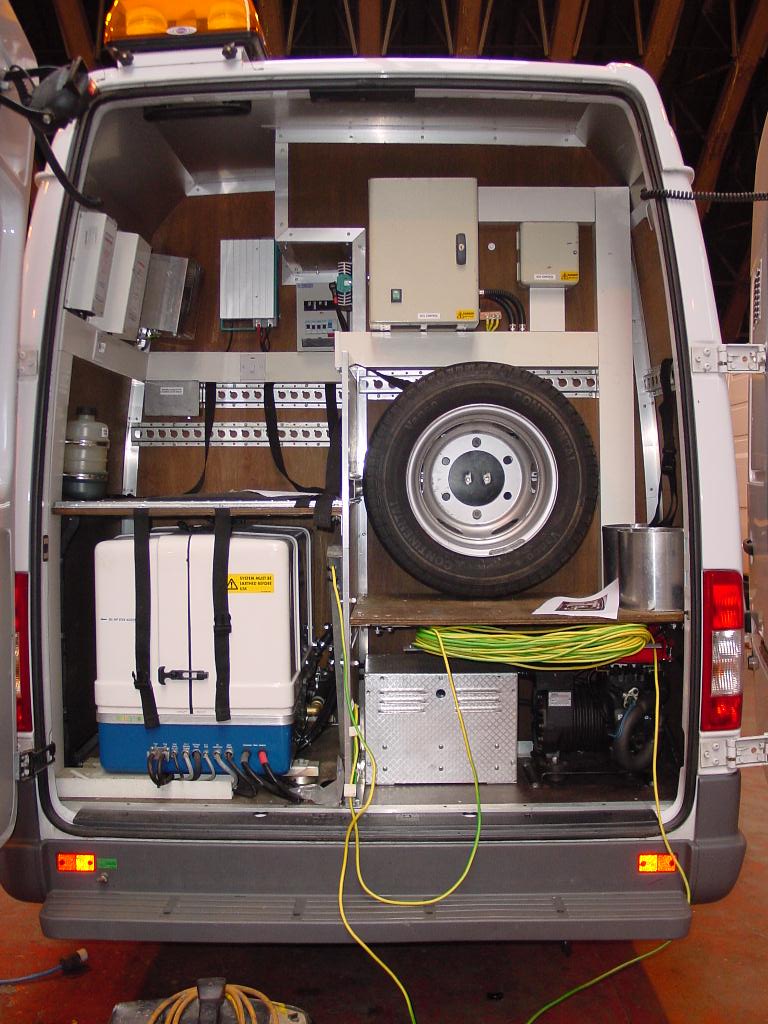

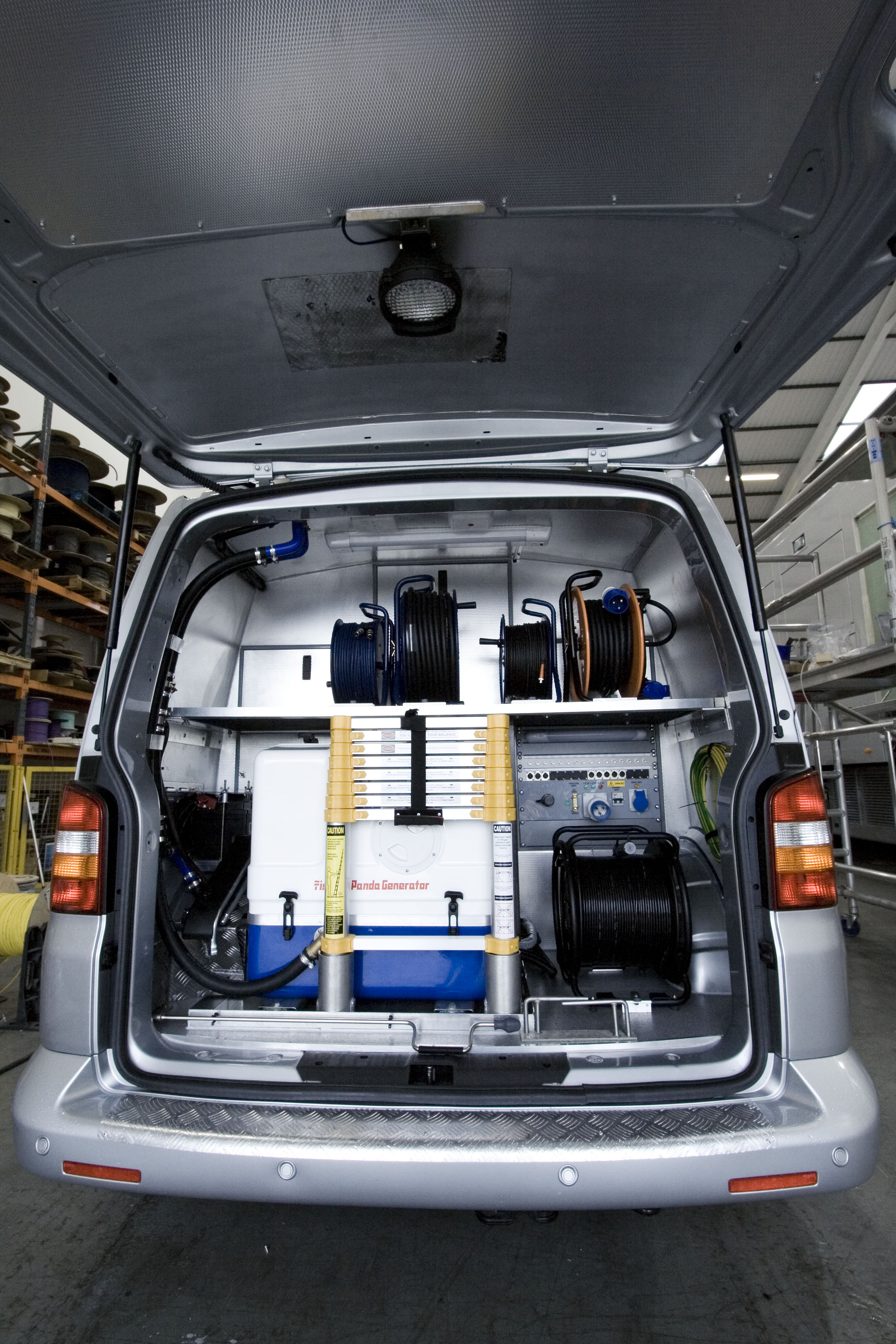

Vehicle Generators - PVMV-N Versions
-
Generators from Panda 35YA and above are supplied with the exhaust manifold
externally mounted and called PVM-NE versions. -
ND version sets are not fitted with the VCS electronic voltage regulators
-
All sets are available with single phase output, three phase output or dual DVS outputs.
-
Other sizes are available on request as are different engine options.
-
The i range of generators are variable speed, the engine speed adjusts in relation to the load.
| |||
 |
| Type / Model |
kW |
kVA |
Volts +/- |
Engine |
Eng. Cyl. |
Sound 7m/3m/1m |
Capsule Dims. L x W x H (mm) |
Weight kgs |
Capsule Type |
| Panda 4.5 ND | 3.8 | 4.5 | +/- 8% | Farymann | 1 | 54/64/68 | 760 x 450 x 570 | 183 | GFK |
| Panda 4000i Variable Speed | 4.0 | 4.7 | pure sine | Kubota | 1 | 52/62/67 | 750 x 420 x 420 | 117 | MPL |
| Panda 5000 LPE | 4.0 | 4.8 | +/- 3 V | Kubota | 1 | 54/64/68 | 750 x 580 x 430 | 213 | MPL |
| Panda 6000 ND | 5.1 | 6.0 | +/- 8% | Kubota | 2 | 52/62/67 | 860 x 515 x 635 | 230 | GFK |
| Panda 6000i Variable Speed | 6.0 | 7.0 | pure sine | Kubota | 2 | 51/60/66 | 770 x 510 x 610 | 200 | GFK |
| Panda 8000 NE | 6.8 | 8.0 | +/- 3 V | Kubota | 2 | 52/62/67 | 860 x 515 x 635 | 230 | GFK |
| Panda 9000 ND | 7.7 | 9.0 | +/- 8% | Kubota | 3 | 53/63/67 | 950 x 515 x 625 | 253 | GFK |
| Panda 12000 NE | 10.2 | 12.0 | +/- 3 V | Kubota | 3 | 53/63/67 | 950 x 515 x 625 | 253 | GFK |
| Panda 15000 NE | 12.7 | 15.0 | +/- 3 V | Kubota | 3 | 54/64/68 | 950 x 515 x 625 | 295 | GFK |
| Panda 18 NE | 15.3 | 18.0 | +/- 3 V | Kubota | 3 | 55/65/69 | 1100 x 540 x 680 | 415 | MPL |
| Panda 24 NE | 20.4 | 24.0 | +/- 3 V | Kubota | 4 | 55/65/69 | 1220 x 540 x 680 | 465 | MPL |
| Panda 30 NE | 25.5 | 30.0 | +/- 3 V | Kubota | 4TD | 55/65/69 | 1260 x 560 x 690 | 512 | MPL |
AGT DC Generators - PVMV-N versions
- All AGT generators are variable speed, the engine rpm controls the amperage output, as the amps decrease the engine slows down.
- AGT generators are available with different DC voltage outputs
- Larger systems are also available
| Type / Model |
Nominal Output |
Cont. Output |
Nom. Amps |
Cont. Amps |
Engine
|
Eng. Cyl. |
Sound 7m/3m/1m |
Capsule Dims L x W x H (mm) |
Weight kgs |
Capsule Type |
| AGT 4000 - 12v | 4kW | 3.2kW | 280 | 220 | Kubota | 1 | 55/65/69 | 750 x 420 x 420 | 130 | MPL |
| AGT 4000 - 24v | 4kW | 3.2kW | 140 | 110 | Kubota | 1 | 52/62/67 | 750 x 420 x 420 | 130 | MPL |
| AGT 5000 - 12v | 4.5kW | 3.6kW | 300 | 250 | Kubota | 2 | 52/62/67 | 750 x 505 x 615 | 189 | GFK |
| AGT 6000 - 24v | 5.5kW | 4.8kW | 210 | 170 | Kubota | 2 | 52/62/67 | 750 x 505 x 615 | 189 | GFK |
| AGT 8000 - 24v | 8kW | 6.4kW | 280 | 220 | Kubota | 3 | 52/62/67 | 860 x 505 x 635 | 216 | GFK |
| AGT 12000 - 48v | 12kW | 10.2kW | 220 | 180 | Kubota | 3 | 54/64/68 | 940 x 505 x 620 | 268 | GFK |
| AGT 14000 - 48v | 14kW | 11.2kW | 250 | 200 | Kubota | 3 | 55/65/69 | 1030 x 550 x 690 | 327 | MPL |
| AGT 16000 - 48v | 16kW | 12.8kW | 280 | 220 | Kubota | 4 | 55/65/69 | 1100 x 550 x 690 | 366 | MPL |
