Panda PVMV-N DC Generators

PANDA AGT (Advance Generator Technology)



Ideal power solution for Hybrid Systems

The AGT generator is a very efficient engine driven battery charger, the charge output from the generator is directly controlled by the engine speed, this leads to exceptionally high efficiency. Auto start is built in as standard which enables the battery condition to control when and for how long the generator runs ensuring the engine is always correctly loaded. The system has been used as the main battery charging source in 'Hybrid Power Systems' for over 20 years, it is also commonly used as a 'range extender' for electric propulsion systems

mastervolt lithium battery charging






Products

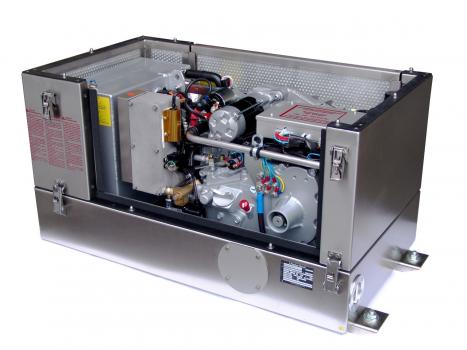

Panda 5000i PVMV-N MPL Capsule


PANDA AGT 4000
PVMV-N
  • Available in any DC voltage
  • 4kW nominal output
  • Panda AGT Control
  • Weight - 120kg
  • Dimensions (mm) L770 x W450 x H430
  • Sound Level - 55dbA

AGT 4000 PVMV-N Drawing

Specification sheet


Speak to us about this product

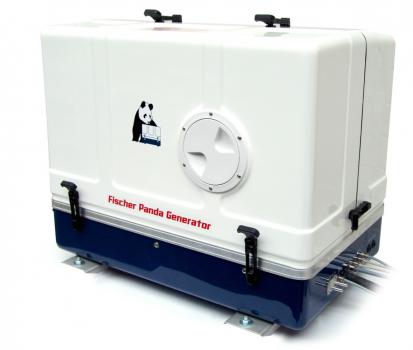

Panda 8000i PVMV-N

PANDA AGT 6000
PVMV-N

stage 5 v1

  • Available in any DC voltage
  • 5.5kW nominal output
  • Panda AGT Control
  • Weight - 189kg
  • Dimensions (mm) L760 x W515 x H609
  • Sound Level - 52dbA

AGT 6000 PVMV-N Drawing

Specification sheet

Speak to us about this product

Panda 8000i PVMV-N

PANDA AGT 8000
PVMV-N

stage 5 v1

  • Available in any DC voltage
  • 8kW nominal output
  • Panda AGT Control
  • Weight - 216kg
  • Dimensions (mm) L860 x W515 x H614
  • Sound Level - 53dbA

AGT 8000 PVMV-N Drawing

Specification sheet

Speak to us about this product





perfect power
Ranges upwards of 11kw available till 40kW

Larger systems are also available on request
