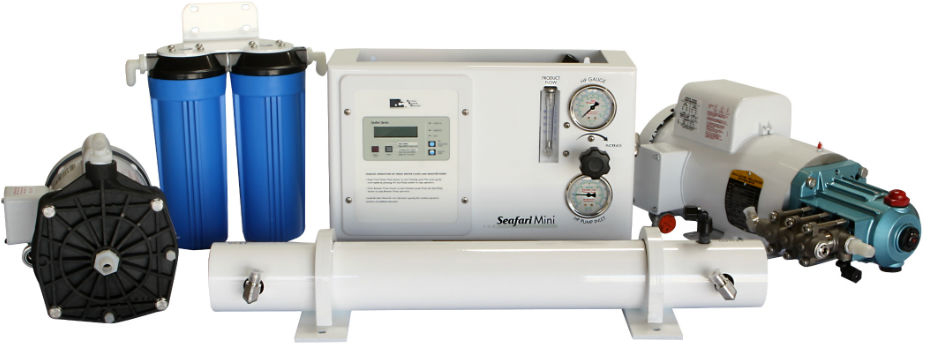

Pro Mini 170 / 350

Overview

The low-hassle Pro Mini is the perfect solution for vessels with little space to spare. Offering the largest production capacity for its size, you can be sure to have plenty of fresh water, without wasting precious storage or engine room space.

DC Option available for 170 model only.

Quick Benefits

  • Extremely quiet, smooth and with complete vibration isolation
  • Failsafe Product Water Diversion Valve allows only safe drinking water into tanks
  • Fits into small and tight spaces, saving on valuable space
  • DC option for Mini 170 model
  • Simple Installation
  • Small, Compact and Lightweight watermaker
  • Contained or modular build types available

Downloads

Specification

Production

Model Number Per 24 Hours - Gal / Lit Per Hour - Gal / Lit Weight
Mini 170 170 / 645 7 / 26 70 lbs / 32 kg
Mini 350 350 / 1,325 15 / 55 89 lbs / 40.4 kg

Electrical

Electrical Voltage Hz Running Amps Start Up Amps
Mini 170 12 / 24 N/A 27 / 13 90 / 45
Mini 170 110/230 50/60 6 / 3 26 / 13
Mini 350 110/230 50/60 12.4 / 6.2 37 / 19

Accessories

Outfitting your Seafari system with HRO's options and accessories will extend life to your watermaker and lower your maintenance costs.

Fresh Water Flush:
FWF-ShoppedExtends the life of the membranes by rinsing them with fresh water by merely a touch of a button. The Fresh Water Flush automatically removes all salt water from internal parts of the system and flushes the membranes with clean fresh water every 7 days. This prevents salt water corrosion of the internal parts and reduces biological fouling of the RO membrane.



Remote Control Unit:
SeafariRemote09The Remote Control Unit is able to monitor the system's performance and alarm status from the bridge or other remote locations.



Plankton Filter Assembly:
PLANKTONFILTERThe Plankton Filter Assembly traps suspended solids larger than 100 micron, thus providing additional protection for your Seafari system's pre-filters, which ultimately prolongs the pre-filter element life.



Charcoal Filter Assembly:
PHNEUTURALIZERCharcoal Filter Assembly removes chlorine, taste, odours, and chemical impurities from the product water. This process of purification works without chemicals and leaves no residual in the water supply.



pH Neutralising Filter:
PLANKTONFILTERThe pH Neutralising Filter provides pH neutralisation of the reverse osmosis system product water. It comes in various filter sizes to fit your needs.





Sea Strainer:
SEASTRAINERSThe Sea Strainer prolongs pre-filter life by trapping suspended solids within the monel mesh screen. Sea Strainers are available in either the traditional plastic housing (SF 170) or the bronze (all other Seafari systems).

U.V. Steriliser
UV sterilizerThe Ultraviolet Steriliser is the final process where 99.8% of all micro-organisms, such as reproducing bacteria and viruses, are sterilised. Ultraviolet replacement U.V. lamps are also available. Please specify voltage.

Soft Motor Start:
ezStart-withLabelThe new, specially designed Soft Motor Start is a device that can be integrated into the Seafari System. The Soft Motor Start will cut the Seafari system's start-up amps by more than half.
