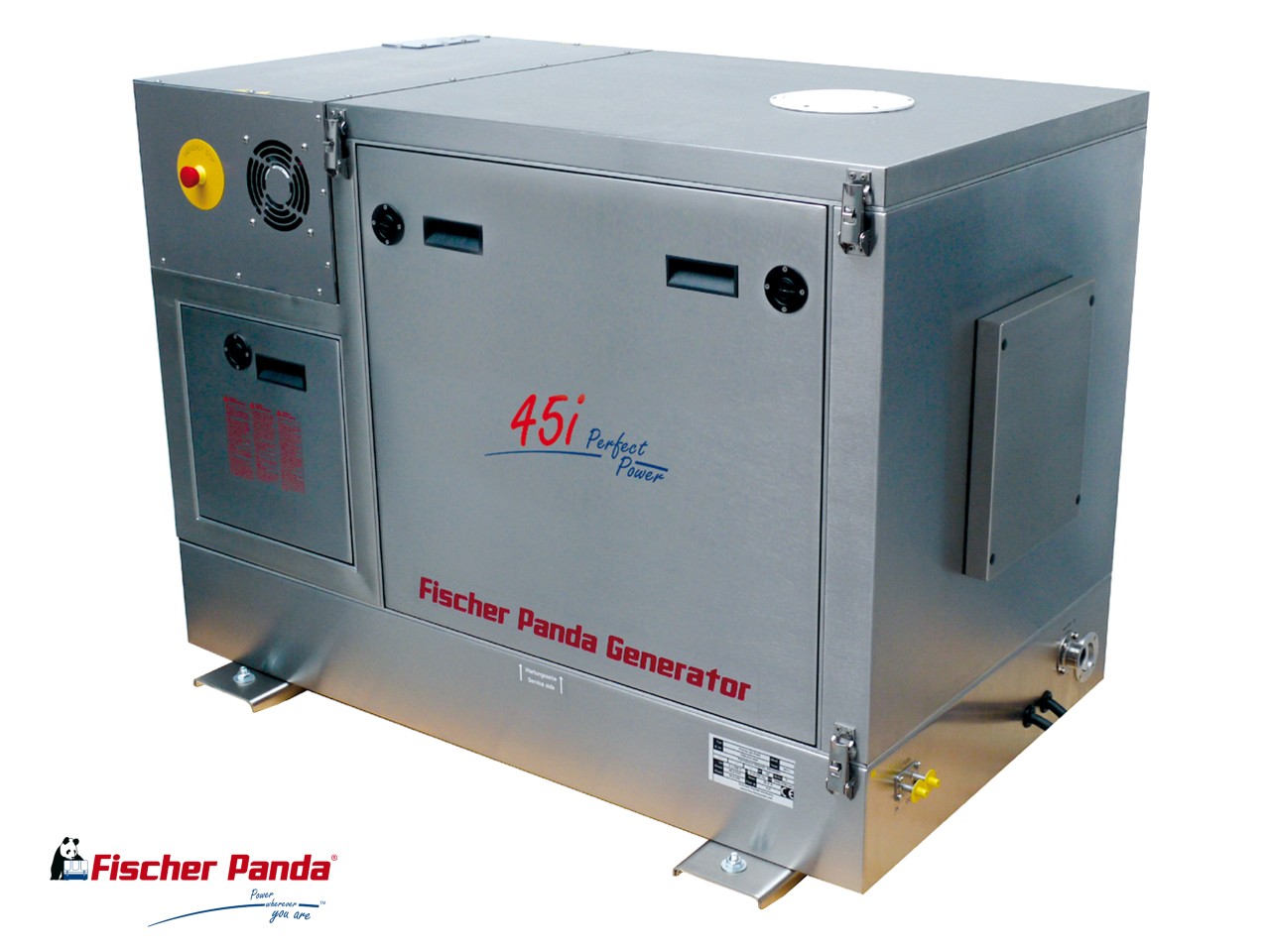

PANDA 45i

45.0kVA / 36.0kW Nominal Output
compact light quiet-02Product Summary
  • Highly efficient Variable Speed technology

  • Lightweight at only 545kgs

  • Quiet running at only 54db(A) @ 7m (@ max rpm)

  • Perfect choice for boats in the 85+' range

  • Ideal for running high start up loads such as multiple air conditioning units or systems, water makers, dive compressors, electric cooking and general onboard power systems

  • 'Twin Circuit Cooled' for maximum cooling effiency

Trusted by boat builders around the world...



Hanse-Yachts-Logo2
1580766315869
fairline logo-600x315w
logo blue-3
download
discovery-yachts-group-logo
SEALINE-Logo rgb
x-yachts-logo-black

Overview

45.0kVA / 36.0kW Nominal Output

The Panda 45i uses the renowned Kubota V2403T four cylinder diesel engine. This robust workhorse of an engine runs extremely quiet and smooth, combined with Fischer Panda's innovative inverter based variable speed technology the result is an incredibly compact and lightweight high power output generator.

The ideal solution where space is limited. If you're running multiple high power consumers such as air conditioning systems, large water makers, electric cooking and general high power systems aboard this highly efficient and powerful unit is perfectly suited. Built with a four cylinder engine its well suited to longer workloads such as long voyages, live aboard or semi-commercial vessels.

Concerned of not having enough power on your boat?

Seeking more flexibilty and enjoyment away from marinas?

Trust Fischer Panda generators to provide you with a proven and reliable solution to the above. We understand boating is about the enjoyment and freedom of where you will end up next, don’t let your lack of power restrict your next voyage!

With virtually unlimited power from the worlds most compact, quiet and reliable generator system, where will your next adventure take you...?

Specification

Model

45i

Generator Type

Panda iSeries Marine (AC)

Power Rating

36.0kW/45.0kVA @400V 50Hz 3Phase

Engine Speed (rpm)

Variable 1500-2700

Voltage Tolerance

3%

Cooling Circuits

Two 'Twin Circuit Cooled' via heat exchanger and sealed fresh water circuit

Capsule Type

MPL (Stainless Steel)

Engine Manufacturer

Kubota

Engine Type

V2403T

Number of Cylinders

4

Sound Level dbA @ 7m

54 @ Max rpm

Approx Capsule Dimensions excl. fitting LxWxH (mm)

1130 x 660 x 810

Approx. Weight incl. Capsule (kg)

545kgs

Downloads

Specification Sheet

45i Drawing

iControl 2 Control Panel Drawing

Installation

INSTALLATION SERVICE AVAILABLE!

Offering you the complete Design, Supply, Installation and Continued Support package... all by Fischer Panda!'

UP TO A 5 YEAR WORLD-WIDE WARRANTY AVAILABLE ON LEISURE APPLICATIONS

Service or Supply

Generally we hold all generators up to 12kVA in stock ready for immediate delivery, this is just one of the advantages of being the largest European manufacturer and standard fit on most of today's popular production boats.

Our multi-award technical team have over 65 years combined experience in all relevant engineering disciplines who are all mobile and are always on hand to assist, either by telephone, email or site visits. Comfortable with new build or retrofit scenarios you can be sure our trained engineers will be able to support you.

Installations

Based on the South Coast we are able to offer a complete installation, testing and hand over of our marine systems all carried out to the highest standard. Our ability to identify a suitable location that minimises the loss of valuable space is based on many years experience of marine installation on a wide variety of boats.

Our proven experience results in an easy, simple and stress free service where you would arrive back to your boat not knowing we had even been on board. Our engineers will not rush your installation, your satisfaction is our sole objective and we will not leave the boat until you are completely happy. Good marine practice combined with high quality marine parts will lead to a reliable installation, this is why when Fischer Panda install the generator we are prepared to under right this with a full 5 year world wide warranty !

We offer a free consultation/Survey to accurately quote so importantly there are no hidden payments.

If you have your own preferred engineer who looks after your boat or want to install the system yourself then we will happily work with you, we can assist with as little or as much of the installation as you require and if you wish to take advantage of the extended warranty we will even come and commission your installation for a nominal fee, your warranty is then upgrade to the full 5 years.*

* To qualify for the 5 year warranty, Fischer Panda parts must be used for the installation.

Support

Fischer Panda are truly a world wide company and as such can support you and your generator installation wherever you choose to travel. Employing over 400 technicians in over 70 countries around the world Fischer Panda's support is the envy of other manufacturers.

For detailed information download our Global Service directory click here.

Installation Gallery of various Fischer Panda installs.





Contact Us

Interested in the Panda 45i?

Please leave your details and a member of the team will contact you shortly regarding this product.
