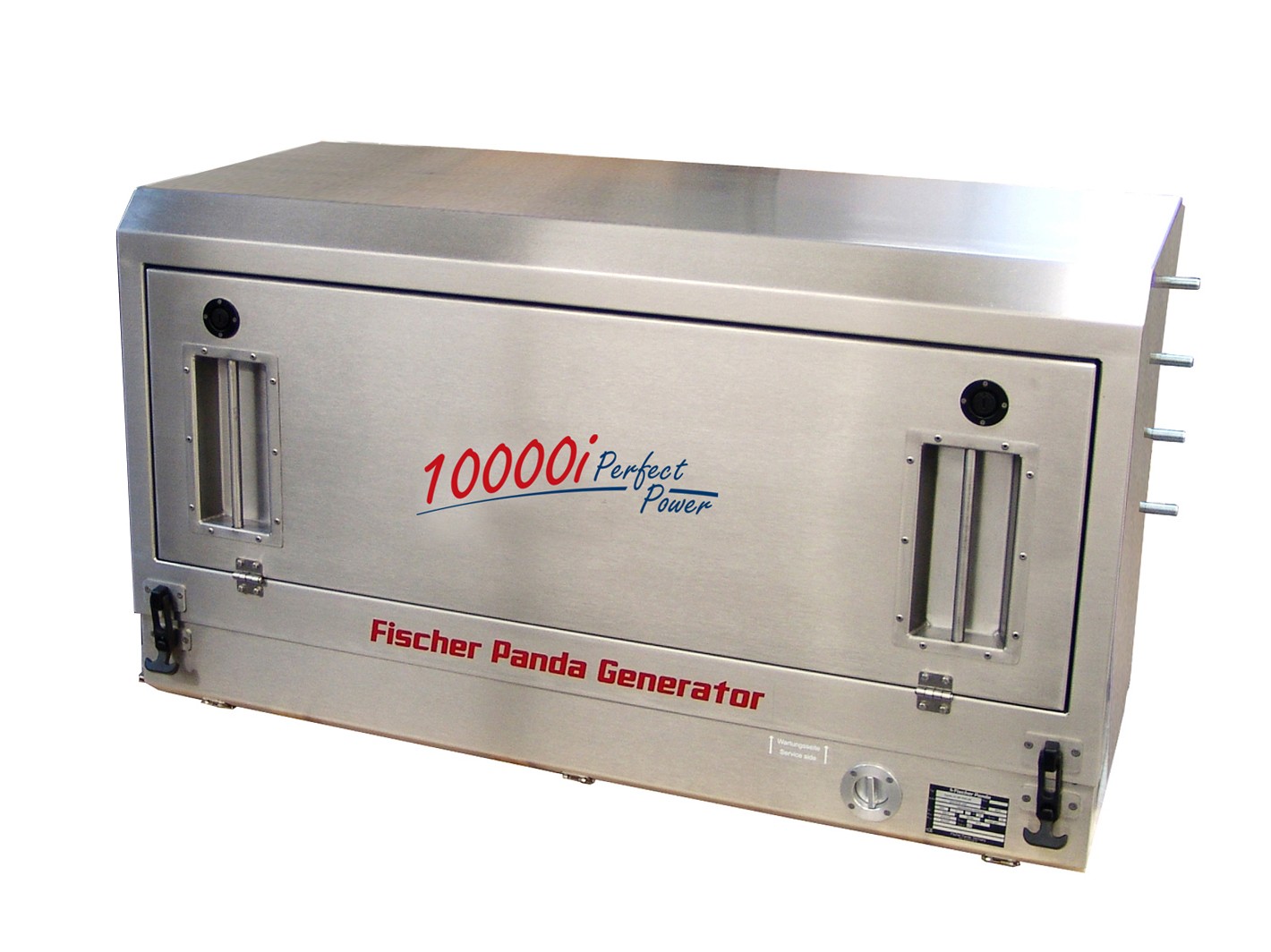

PANDA 10000i PVK-U

10.0kVA / 8.0kW Nominal Output
compact light quiet-02Product Summary
  • High efficient Variable Speed Technology

  • Stage V Exhaust emmissions compliant stage 5 v1a

  • Integrated water-cooled and pre-silenced exhaust inside capsule

  • Lightweight at only 242kgs

  • Quiet running at only 52db(A) @ 7m (@ max rpm)

  • Suitable for external mounting


10.0kVA / 8.0kW Nominal Output

The Panda 10000i PVK-U uses the solid and well renowned Kubota Z602 diesel engine resulting in a very smooth running, quiet and lightweight twin cylinder generator.

The ideal solution where space is limited and keeping payload to a minimum. If you're looking for a compact power solution designed for external mounting often on trucks with limited space between axles this set offers a proven solution. Capable of covering battery charging, on board utility/domestic appliances and sensitive monitoring or communication equipment.



10000i PVk-U

Generator Type

Panda iSeries Vehicle (AC)

Power Rating

8.0kW Nominal / 9.4kVA @ 230v 50Hz 1Phase

Engine Speed (rpm)

Variable 2200-2800rpm

Voltage Tolerance


Cooling Circuits

Sealed inhibited cooling circuit via remote radiator cooling pack

Capsule Type

MPL (Stainless Steel)

Engine Manufacturer


Engine Type


Number of Cylinders


Sound Level dbA @ 7m

52 @ Max rpm

Approx Capsule Dimensions excl. fitting LxWxH (mm)

809 x 530 x 620

Approx. Weight incl. Capsule (kg)



Specification Sheet

10000i PVK-U Drawing

10000i PMGi (Inverter) Drawing

iControl 2 Control Panel Drawing



Offering you the complete Design, Supply, Installation, Service and Continued Support package... all by Fischer Panda!

Service or Supply

Our multi-award technical team have over 65 years combined experience in all relevant engineering disciplines who are all mobile and are always on hand to assist, either by telephone, email or site visits. Comfortable with new build or retrofit scenarios you can be sure our trained engineers will be able to support you.


Based on the South Coast we are able to offer a complete installation, testing and hand over of our on board power systems all carried out to the highest standard. Our ability to identify a suitable location that minimises the loss of valuable space and keeps noise to a minimum is based on many years experience on a vast variety of specialist vehicles.

Our engineers will not rush your installation, your satisfaction is our sole objective and we will not finish the installation until you are completely happy. Good engineering practice combined with high quality parts will lead to a reliable installation.

We offer a free consultation/survey to accurately quote so importantly there are no hidden costs.

If you have your own preferred engineering team who looks after your vehicle (s) or want to install the system yourself then we will happily work with you, we can assist with as little or as much of the installation as you require, and can for a small fee check and commission your installation, giving you peace of mind.


Fischer Panda are truly a world wide company and as such can support you and your generator installation wherever you operate. Employing over 400 technicians in over 70 countries around the world Fischer Panda's support is the envy of other manufacturers.

For detailed information download our Global Service directory click here.

Installation Gallery below of various PVK-U installs.
