Coral Sea

Overview

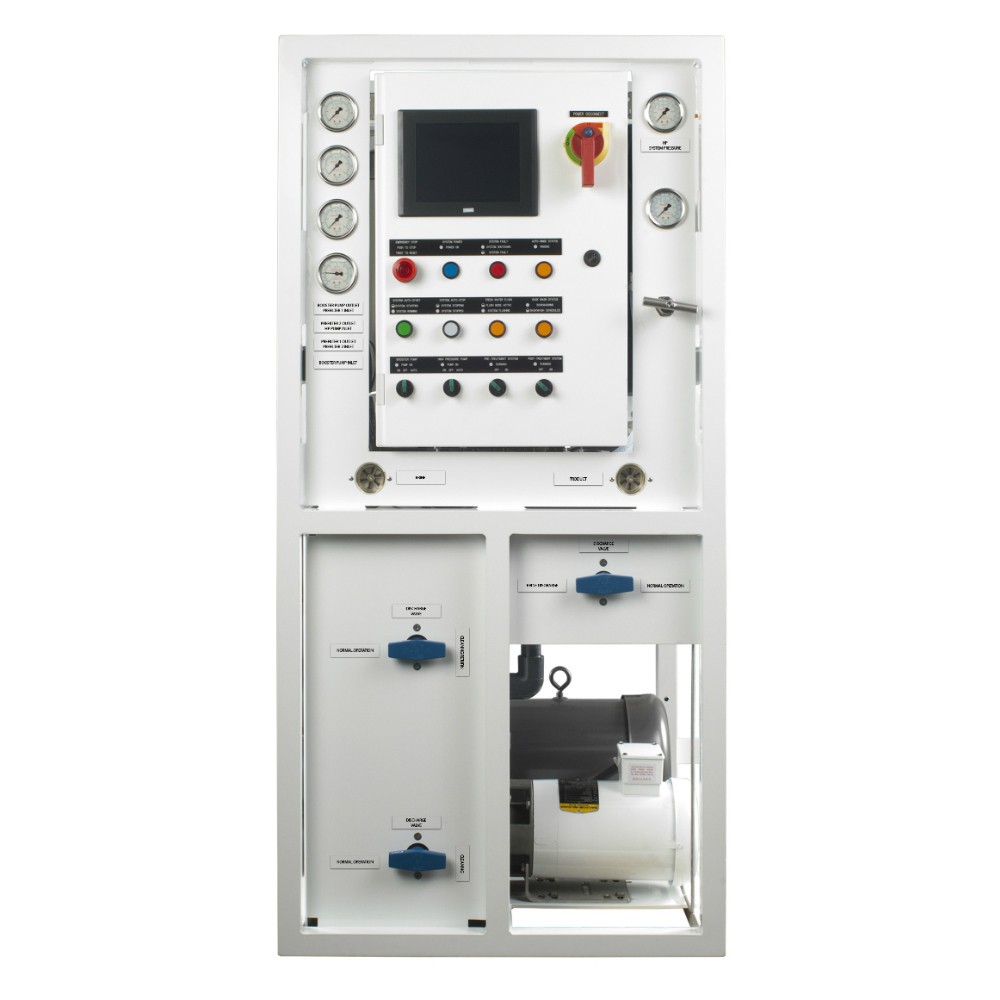

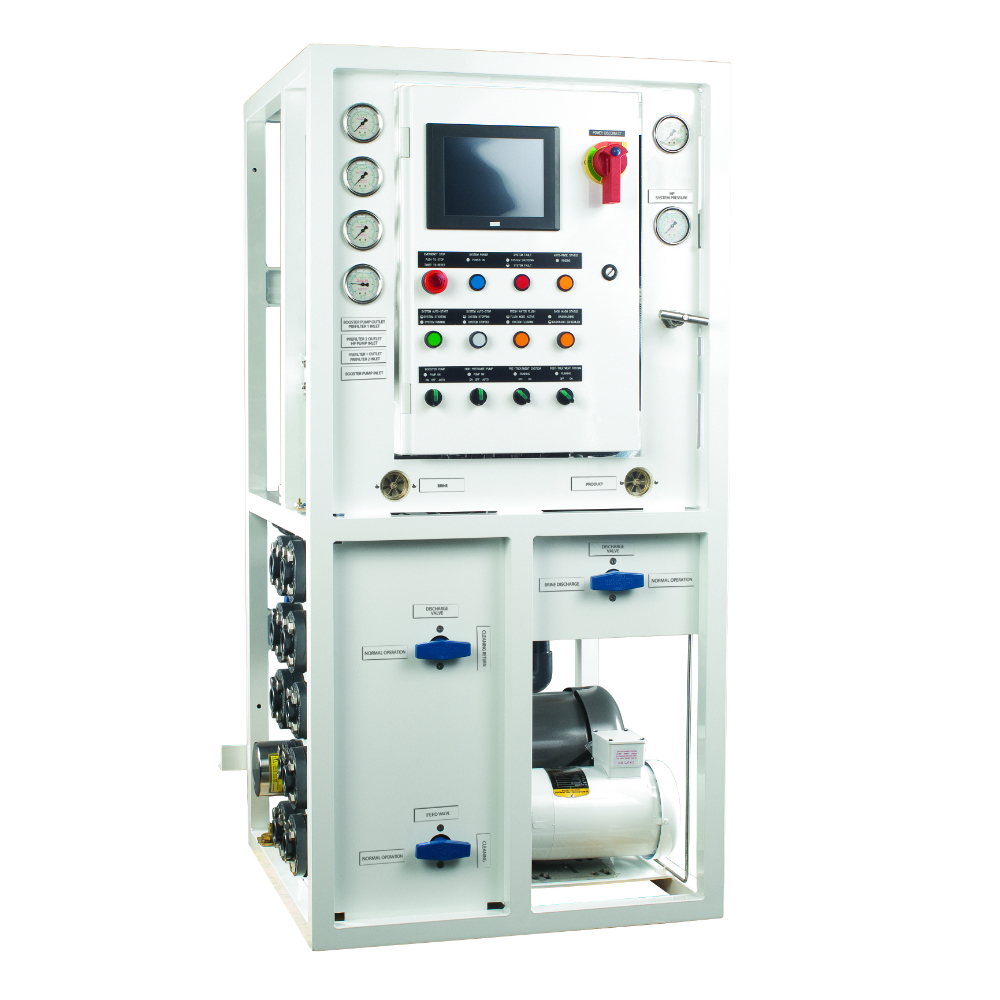

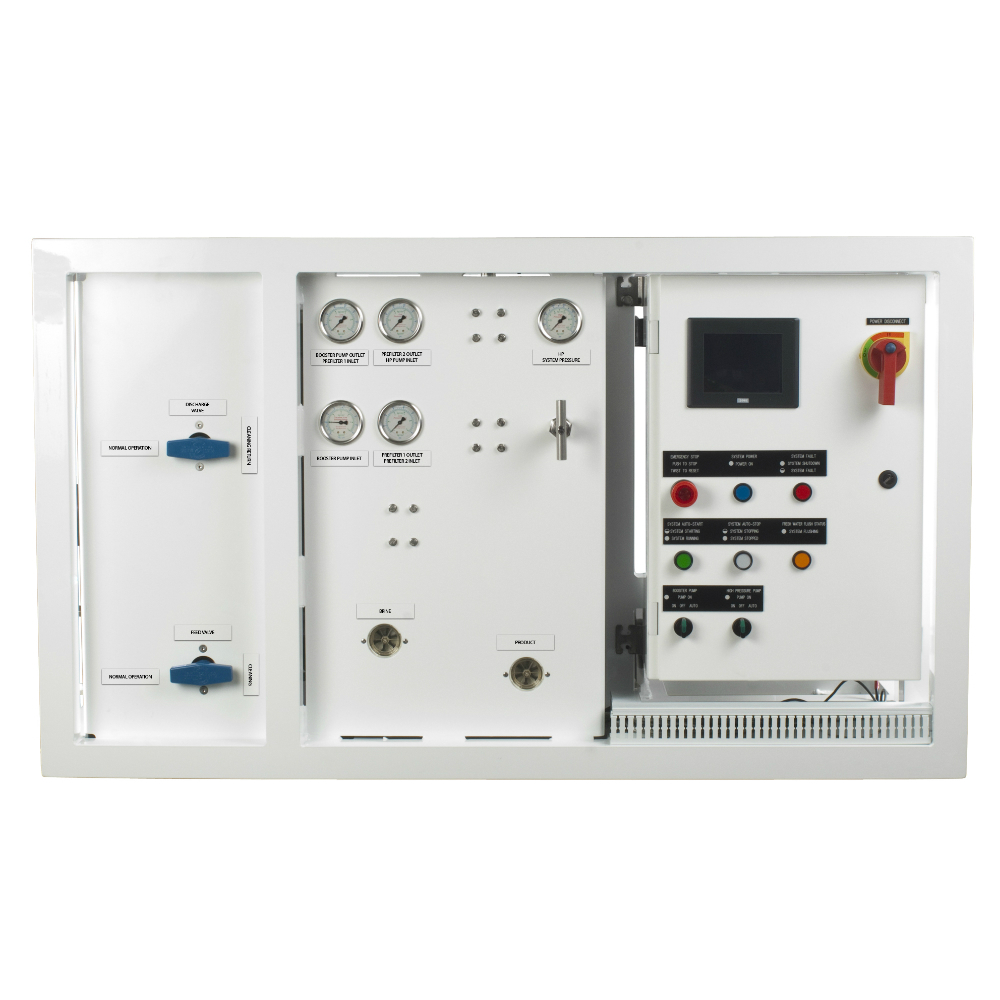

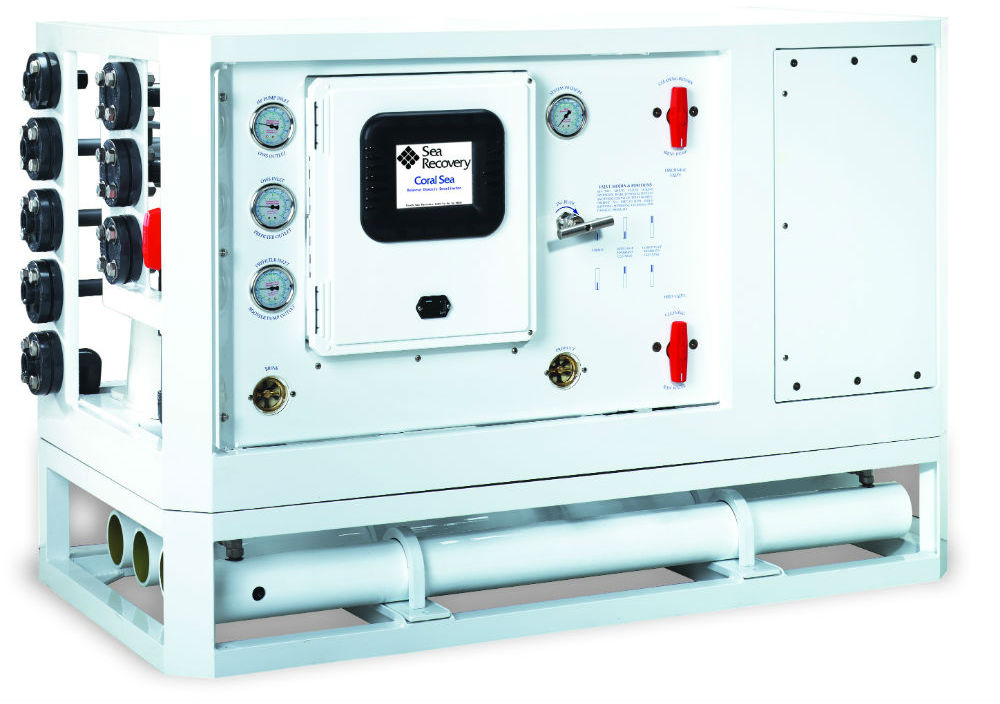

The Coral Sea Series creates the perfect watermaker for super yachts and other commercial clients by combining industrial strength production with space saving designs. Coral Sea systems are not only installed in luxury yachts, but are also regularly opted for on oil rigs and commercial vessels around the world.

Quick Benefits

  • Extremley quiet, smooth and complete with vibration isolation
  • Failsafe Product Water Diversion Valve allows only safe drinking water into tanks
  • Contained or modular build types available
  • High level of water production
  • User-friendlt colour touchscreen
  • Semi-Automatic

Downloads

Specification

Production

Model Number Per 24 Hours - Gal / Lit Per Hour - Gal / Lit Weight
Coral Sea 2800 2,800 / 10.59 m3 699 / 442 980 lbs / 445 kg
Coral Sea 3600  2,600 / 13.62 m3 899 / 568 980 lbs / 445 kg
Coral Sea 4200 4,200 / 15.89 m3 1,050 / 662 980 lbs / 450 kg
Coral Sea 5200 5,200 / 19.68 m3 1,299 / 820 1,000 / 454 kg
Coral Sea 6200 6,200 / 23.46 m3 1,549 / 978 1,020 / 463 kg
Coral Sea 6800 6,800 / 25.73 m3 1,699 / 1,073 1,050 / 477 kg

Electrical

Different Voltage and Phase outputs are also available across various models.

Electrical Voltage / PH Hz HP Pump  (Amps) Booster (Amps) FLA (Amps)
2800 & 3600 220 / 1 PH 50 7.5 2 39
4200 - 6800 460 / 3 PH 50 10 2 16

Accessories

Outfitting your Sea Recovery System with some of the options and accessories below will extend life to your watermaker and lower your maintenance costs.

Fresh Water Flush:
FWF-ShoppedExtends the life of the membranes by rinsing them with fresh water by merely a touch of a button. The Fresh Water Flush automatically removes all salt water from internal parts of the system and flushes the membranes with clean fresh water every 7 days. This prevents salt water corrosion of the internal parts and reduces biological fouling of the RO membrane.

Chemical Injection:
ChemicalInjectionControl the chemistry of the feed water to reduce and prevent fouling.





pH Neutralising Filter:
PLANKTONFILTERThe pH Neutralising Filter provides pH neutralisation of the reverse osmosis system product water. It comes in various filter sizes to fit your needs.





U.V. Steriliser
UV sterilizerThe Ultraviolet Steriliser is the final process where 99.8% of all micro-organisms, such as reproducing bacteria and viruses, are sterilised. Ultraviolet replacement U.V. lamps are also available. Please specify voltage.
