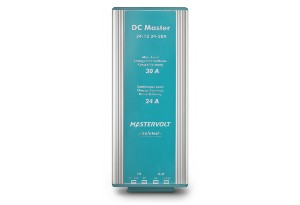

Mastervolt DC Master 24/12-24 (Isolated)

24-12-24 iso

Mastervolt DC Master 24/12-24 (Isolated)

RRP
£340.00 ex VAT

Your Buy Price
£255.00 ex VAT

Please ask for Availability

Contact Us

Price £255.00 (Ex VAT) Quantity

Product code:  81500350

Manufacturer: Mastervolt

he required voltage for DC current can vary. Some equipment requires 24 V, while onboard equipment usually requires 12 V. For custom DC current, Mastervolt offers a series of compact and made to measure DC-DC converters for both 12 V and 24 V battery systems that offer stable power with the right current for any connected consumer. There is a wide range of DC Master converters available, including insulated and non-insulated models.

  • Recreational and semi-professional use.
  • Easy to install using included mounting bracket.
  • Excellent price/performance ratio.
  • Available in isolated and non-isolated version.

Download the user manual

Intelligent DC-DC converters

A large benefit of the DC Master models is their two minutes of extra capacity; ideal if you need a short power boost.

Complete package

All DC Master converters are delivered with mounting bracket, screws and fasteners.

General specifications

Nominal output voltage 13.6 V
Max. output power 408 W
Nominal output power 326 W
Max. output current (for 2 min. intervals) 30 A
Continuous output current 24 A
Nominal input voltage 24 V
Input voltage range (max.) 20-32 V DC (35 V)
Galvanic isolation yes
Stabilised yes
Dimensions, hxwxd 217 x 87 x 50 mm
8.5 x 3.4 x 2.0 inch
Weight 0.785 kg
1.7 lb
Compliance CE, E-mark


Technical specifications

DC consumption < 15 mA
Connections fast-on
Temperature range (ambient temp.) -25 °C to 80 °C, derating > 30 °C
-13 °F to 176 °F
Cooling natural cooling
Protection degree IP53


The non-isolated DC Master models have an electrical connection between  the input and output.
Features:

  • Low costs.

  • Efficient: low heat generation.
  • Compact.
  • Suited to applications with negative earthing.



The isolated DC Master models provide galvanic isolation between input and output circuits.
Features:

  • Extra touch-proof.

  • Interference suppression for sensitive equipment.
  • Available with negative or positive grounding.

Intelligent DC-DC converters

A large benefit of the DC Master models is their two minutes of extra capacity; ideal if you need a short power boost.

Complete package

All DC Master converters are delivered with mounting bracket, screws and fasteners.

General specifications

Nominal output voltage 13.6 V
Max. output power 408 W
Nominal output power 326 W
Max. output current (for 2 min. intervals) 30 A
Continuous output current 24 A
Nominal input voltage 24 V
Input voltage range (max.) 20-32 V DC (35 V)
Galvanic isolation yes
Stabilised yes
Dimensions, hxwxd 217 x 87 x 50 mm
8.5 x 3.4 x 2.0 inch
Weight 0.785 kg
1.7 lb
Compliance CE, E-mark


Technical specifications

DC consumption < 15 mA
Connections fast-on
Temperature range (ambient temp.) -25 °C to 80 °C, derating > 30 °C
-13 °F to 176 °F
Cooling natural cooling
Protection degree IP53


The non-isolated DC Master models have an electrical connection between  the input and output.
Features:

  • Low costs.

  • Efficient: low heat generation.
  • Compact.
  • Suited to applications with negative earthing.



The isolated DC Master models provide galvanic isolation between input and output circuits.
Features:

  • Extra touch-proof.

  • Interference suppression for sensitive equipment.
  • Available with negative or positive grounding.
