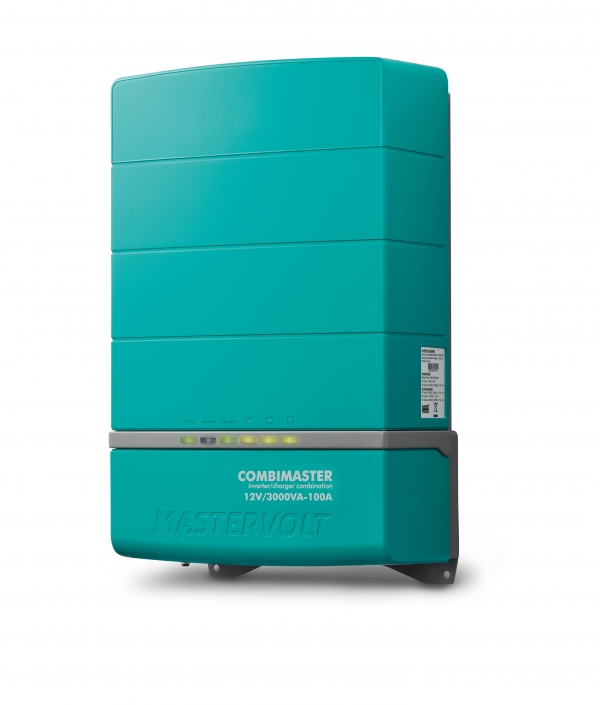

Mastervolt CombiMaster Inverter/Charger 12/3000-100 230V

Mastervolt-CombiMaster-Inverter-Charger-12-3000-100-230V-front-Fischer-Panda

Mastervolt CombiMaster Inverter/Charger 12/3000-100 230V

RRP £1466.00

£1099.50

Price £1099.50 (Ex VAT) Quantity

Product code: 35013000

Manufacturer: Mastervolt

Unmatched performance at an unprecedented price
Designed with the customer in mind and using the latest technology, the CombiMaster range is all about user-friendliness and reliability. But don’t let that friendly appearance misguide you: the powerful CombiMaster range drives even the heaviest and most sensitive loads with ease!

With the CombiMaster, power dips and failures belong to the past. The automatic AC transfer system switches between generator or mains and inverter output, ensuring a constant power supply. Its Power Assist function prevents tripping of the mains fuse in case you’re connected to a weak land line or small generator.

The CombiMaster range delivers unmatched performance and value for money. As you would expect from Mastervolt, the CombiMaster is completed with MasterBus, CZone and NMEA 2000 compatible communication, allowing for a broad range of monitoring and system integration options.

Download the user manual

Specifications sine wave inverter

Nominal DC voltage 12 V (10.2–16 V)
Output voltage 230 V
Output frequency 50/60 Hz (configurable)
Output waveform true sine
Continuous power at 40 °C / 104 °F, cos phi 1 3000 VA / 2600 W
Peak power (30 sec) 4500 VA / 3900 W
Surge power (5 sec) 6000 VA / 5200 W
Max. efficiency 93 %
Battery no-load power consumption 30 W (on mode) / < 1 mA (off mode)
Energy saving mode consumption 10 W
Synchronise with mains yes


Specifications battery charger

Input voltage range 170-280 V
Max. input current 10 A (adjustable)
Max. charge current at 40 °C / 104 °F 100 A at 14,25 V (configurable)
Battery temperature sensor yes, included
Battery voltage sense automatic compensation


Specifications transfer system

AC input 25 A (switched)
AC output 38 A
AC input fuse yes
Transfer speed 10 ms
Transfer voltage range wide: 90–280 V / narrow: 170–280 V
Transfer frequency range 40-65 Hz


General specifications

Galvanic isolation yes
Display/read-out LED display
Dimensions, hxwxd 448 x 284 x 155 mm
17.6 x 11.2 x 6.1 inch
Weight 9.3 kg
20.5 lb
Compliance CE, E-mark, AZ/NZS


Technical specifications

Charge characteristic IUoUo, automatic / 3-step+ for flooded, Gel/AGM and MLI, configurable
Recommended battery capacity 300-800 Ah (based on gel batteries, may differ for other types)
Ground relay yes, configurable by means of mechanical jumper
Temperature range (ambient temp.) -25 °C to 60 °C, derating > 40 °C
-13 °F to 140 °F
Cooling vario fan
Protection degree IP23 (vertical mounting)
Safety class IEC protection class I
Humidity protection conformal coating, max. 95 % relative humidity, non condensing
Protections over-temperature, overload, short circuit, high/low battery voltage
Power Assist yes, supports AC input with power from the battery
Power Sharing yes, allows you to select AC Input fuse setting
MasterBus compatible yes
CZone / NMEA 2000 compatible yes

Remote Control and Monitoring options

  • MasterBus compatible via SmartRemote or EasyView 5 display.
  • CZone / NMEA 2000 compatible via Touch 5 or Touch 10 display.
  • NMEA 2000 compatible via 3rd party multifunctional display.

Features

  • Most compact and lightweight Combi in its class.
  • Reliable, hum-free and longer operation from your batteries.
  • Starts even the heaviest and most sensitive loads.
  • Intelligent 3-step+ battery charger for faster and safer charging.
  • Automatic switching between mains and inverter mode.
  • Power Assist prevents blown mains fuses.
  • Generator compatible.
  • Integrated CZone, MasterBus and NMEA 2000 communication.
  • Quick installation with heavy duty connections.
  • E-mark certified.

With the CombiMaster, power dips and failures belong to the past. The automatic AC transfer system switches between generator or mains and inverter output, ensuring a constant power supply. Its Power Assist function prevents tripping of the mains fuse in case you’re connected to a weak land line or small generator.

The CombiMaster range delivers unmatched performance and value for money. As you would expect from Mastervolt, the CombiMaster is completed with MasterBus, CZone and NMEA 2000 compatible communication, allowing for a broad range of monitoring and system integration options.

Download the user manual

Specifications sine wave inverter

Nominal DC voltage 12 V (10.2–16 V)
Output voltage 230 V
Output frequency 50/60 Hz (configurable)
Output waveform true sine
Continuous power at 40 °C / 104 °F, cos phi 1 3000 VA / 2600 W
Peak power (30 sec) 4500 VA / 3900 W
Surge power (5 sec) 6000 VA / 5200 W
Max. efficiency 93 %
Battery no-load power consumption 30 W (on mode) / < 1 mA (off mode)
Energy saving mode consumption 10 W
Synchronise with mains yes


Specifications battery charger

Input voltage range 170-280 V
Max. input current 10 A (adjustable)
Max. charge current at 40 °C / 104 °F 100 A at 14,25 V (configurable)
Battery temperature sensor yes, included
Battery voltage sense automatic compensation


Specifications transfer system

AC input 25 A (switched)
AC output 38 A
AC input fuse yes
Transfer speed 10 ms
Transfer voltage range wide: 90–280 V / narrow: 170–280 V
Transfer frequency range 40-65 Hz


General specifications

Galvanic isolation yes
Display/read-out LED display
Dimensions, hxwxd 448 x 284 x 155 mm
17.6 x 11.2 x 6.1 inch
Weight 9.3 kg
20.5 lb
Compliance CE, E-mark, AZ/NZS


Technical specifications

Charge characteristic IUoUo, automatic / 3-step+ for flooded, Gel/AGM and MLI, configurable
Recommended battery capacity 300-800 Ah (based on gel batteries, may differ for other types)
Ground relay yes, configurable by means of mechanical jumper
Temperature range (ambient temp.) -25 °C to 60 °C, derating > 40 °C
-13 °F to 140 °F
Cooling vario fan
Protection degree IP23 (vertical mounting)
Safety class IEC protection class I
Humidity protection conformal coating, max. 95 % relative humidity, non condensing
Protections over-temperature, overload, short circuit, high/low battery voltage
Power Assist yes, supports AC input with power from the battery
Power Sharing yes, allows you to select AC Input fuse setting
MasterBus compatible yes
CZone / NMEA 2000 compatible yes

Remote Control and Monitoring options

  • MasterBus compatible via SmartRemote or EasyView 5 display.
  • CZone / NMEA 2000 compatible via Touch 5 or Touch 10 display.
  • NMEA 2000 compatible via 3rd party multifunctional display.

Features

  • Most compact and lightweight Combi in its class.
  • Reliable, hum-free and longer operation from your batteries.
  • Starts even the heaviest and most sensitive loads.
  • Intelligent 3-step+ battery charger for faster and safer charging.
  • Automatic switching between mains and inverter mode.
  • Power Assist prevents blown mains fuses.
  • Generator compatible.
  • Integrated CZone, MasterBus and NMEA 2000 communication.
  • Quick installation with heavy duty connections.
  • E-mark certified.
