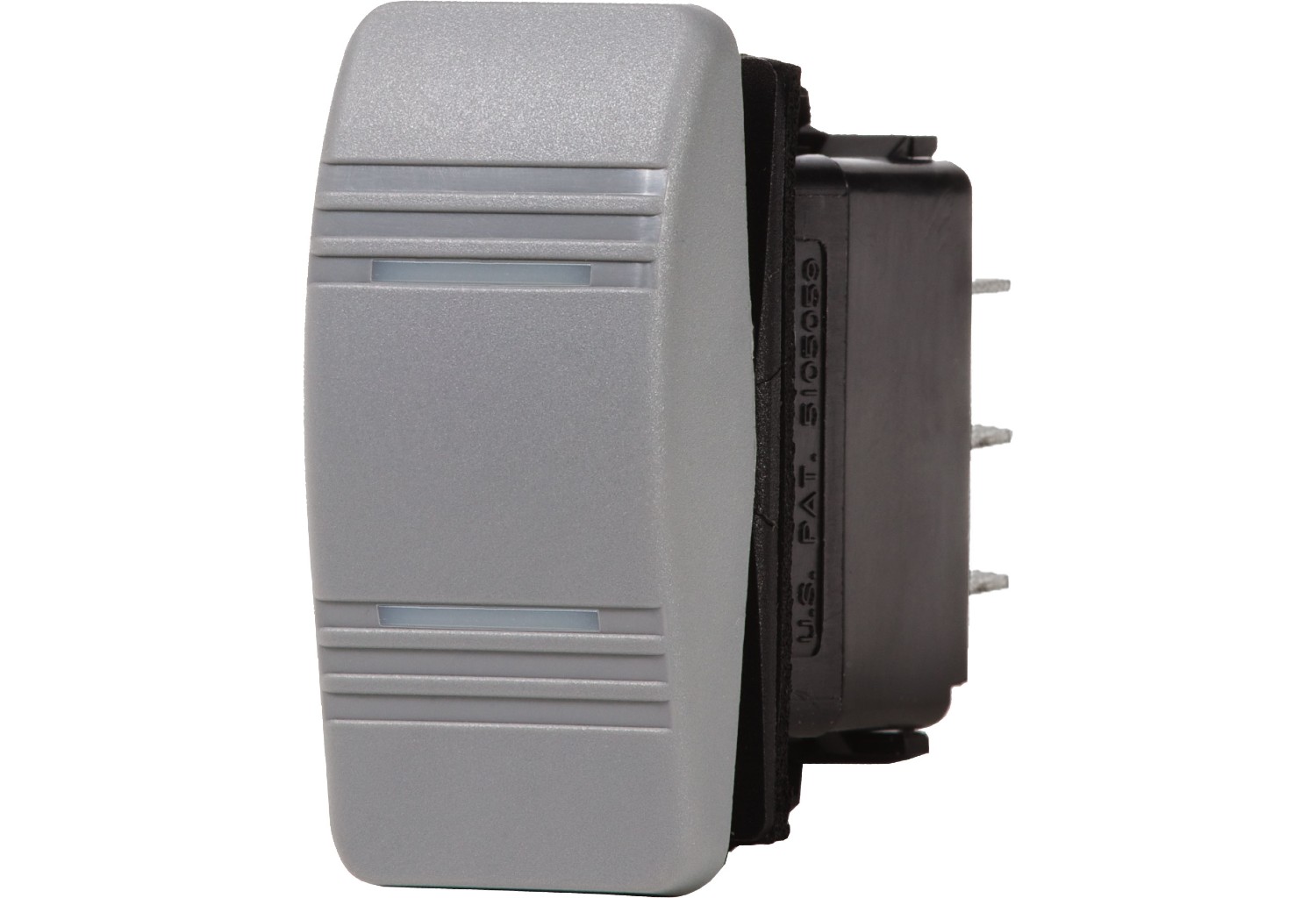

Blue Sea Systems Switch Contura SPDT On-Off-On
Product code: 8232-BSS
Manufacturer: Blue Sea Systems
- Vibration, shock, thermoshock, moisture and salt spray resistant
- Specially manufactured for mounting in Blue Sea Systems" water resistant panels
- Ignition Protected - Safe for installation aboard gasoline powered boats
- Meets UL1500 and ISO8846 ignition protection requirements
*** For trade enquiries please contact us using the form below ***
Specifications |
|
|---|---|
| Action | ON-OFF-ON |
| Pole / Throw | SPDT |
| Actuator Color | Gray - Contura III |
| Common Applications | combining nav lights or anchor light with independent bulbs |
| Maximum Amperage | 20A @ 12V 15A @ 24V |
| Amperage Operating Current | 18mA (LED) |
| Minimum Operating Temperature | -40° C |
| Maximum Operating Temperature | 85° C |
| Actuator Position to Light LED | ON |
| Embedded LEDs | 2 |
| Lighting | LED rated 100,000 hours half-life |
| Seals | Internal and external gasket panel seal |
| Weight | 0.09lb (0.04 kg) |
| Weight | 0.09lb (0.04 kg) |
Specifications |
|
|---|---|
| Action | ON-OFF-ON |
| Pole / Throw | SPDT |
| Actuator Color | Gray - Contura III |
| Common Applications | combining nav lights or anchor light with independent bulbs |
| Maximum Amperage | 20A @ 12V 15A @ 24V |
| Amperage Operating Current | 18mA (LED) |
| Minimum Operating Temperature | -40° C |
| Maximum Operating Temperature | 85° C |
| Actuator Position to Light LED | ON |
| Embedded LEDs | 2 |
| Lighting | LED rated 100,000 hours half-life |
| Seals | Internal and external gasket panel seal |
| Weight | 0.09lb (0.04 kg) |
| Weight | 0.09lb (0.04 kg) |
