Blue Sea Systems SafetyHub 100 Fuse Block

blueseas-7725

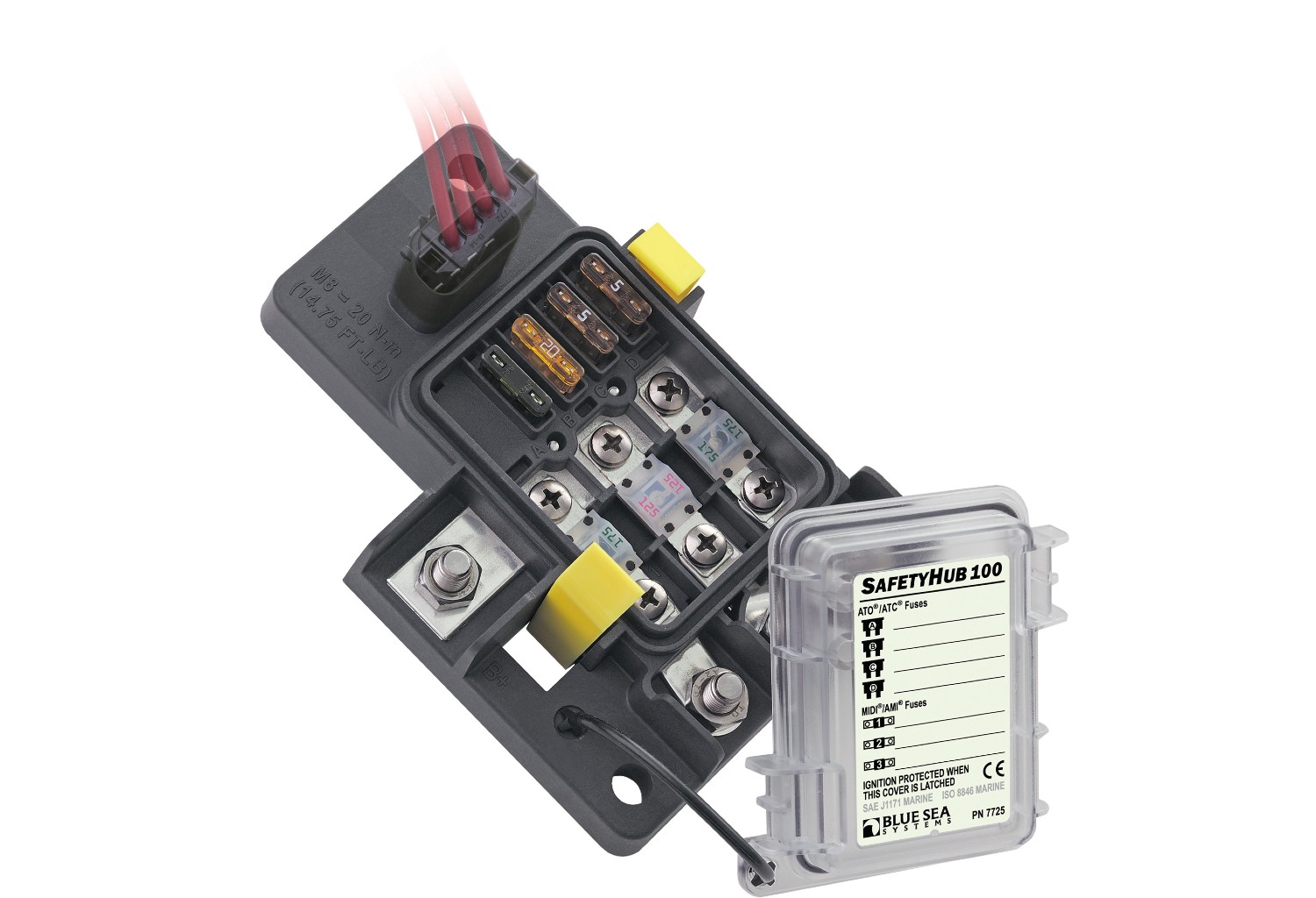

Blue Sea Systems SafetyHub 100 Fuse Block

RRP
£99.65 ex VAT

Your Buy Price
£84.70 ex VAT

Price £84.70 (Ex VAT) Quantity

Product code: 7725-BSS

Manufacturer: Blue Sea Systems

The SafetyHub 100 combines an ignition protected fuse block and an integrated connecting plug. It is safe for use on gasoline powered boats, reduces wiring connections, and consolidates up to seven fused circuits.

  • Three 30A−200A MIDI®/AMI® fuses [sold separately] ideal for high-amp circuits including panel feeds, windlasses, and stereo amplifiers
  • Four 1A−20A  ATO®/ATC® fuses  [sold separately] ideal for circuits including bilge pumps, alarms, and clock memory
  • Sealed cover protects fuses from the harsh marine environment: IP66 rating—protected against powerful
    water jets
  • Integrated connector plugs eliminate loose wires and provide a secure, waterproof connection
  • Ignition protected fusing meets Coast Guard and ABYC requirements for installation on gasoline or diesel powered boats

*** For trade enquiries please contact us using the form below ***

Contact us

Installation Instructions

Download instructions

Specifications

Circuits 7
Stud Size M8 x 1.25
Operating Voltage 12V
24V
32V
Amperage Maximum Operating - combined 280A
Recommended Ring Terminal M8 (5/16")
Screw Torque, 8-32 18in-lb (2.03 Nm)
Screw Torque, M5 27in-lb (3.05 Nm)
Stud Torque 180 in-lb (20.34 Nm)
Weight 3.20lb (1.45 kg)

Installation Instructions

Download instructions

Specifications

Circuits 7
Stud Size M8 x 1.25
Operating Voltage 12V
24V
32V
Amperage Maximum Operating - combined 280A
Recommended Ring Terminal M8 (5/16")
Screw Torque, 8-32 18in-lb (2.03 Nm)
Screw Torque, M5 27in-lb (3.05 Nm)
Stud Torque 180 in-lb (20.34 Nm)
Weight 3.20lb (1.45 kg)
