Blue Sea Systems Fuse Block Safety Midi

blueseas-7720

Blue Sea Systems Fuse Block Safety Midi

RRP
ex VAT

Please ask for Availability

Contact Us

Product code: 7720-BSS

Manufacturer: Blue Sea Systems

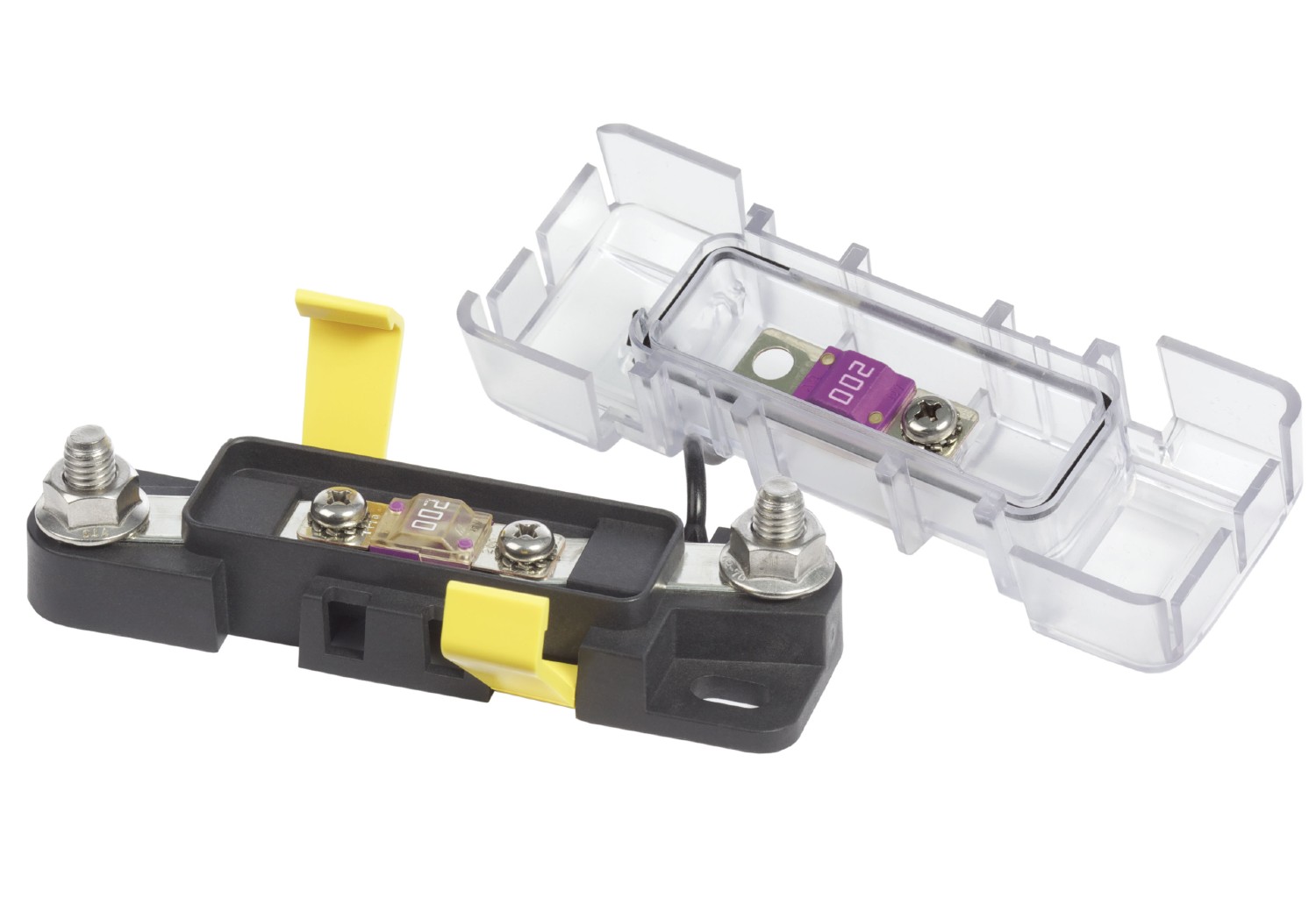

Ignition protected for installation aboard gasoline or diesel powered boats

Sealed cover protects fuses from the harsh marine environment

Insulating cover satisfies ABYC/USCG insulation requirements

Cover breakouts allow wire access in any direction

200A maximum with 4/0 cable

Accepts Blue Sea Systems Square Format standard or custom label

Fuses sold separately

*** For trade enquiries please contact us using the form below ***

Contact us

Specifications

Maximum Amperage  200A
Maximum Voltage 32V DC
Stud Size M8 x 1.25
Fuse Screw M5 x 0.8
Recommended Screw Torque 27 in-lb (3.05 N·m)
Recommended Stud Torque 120 in-lb (13.56 N·m)
Ring Terminal Size M8 (5/16")
Weight 0.15lb (0.07 kg)

Specifications

Maximum Amperage  200A
Maximum Voltage 32V DC
Stud Size M8 x 1.25
Fuse Screw M5 x 0.8
Recommended Screw Torque 27 in-lb (3.05 N·m)
Recommended Stud Torque 120 in-lb (13.56 N·m)
Ring Terminal Size M8 (5/16")
Weight 0.15lb (0.07 kg)
