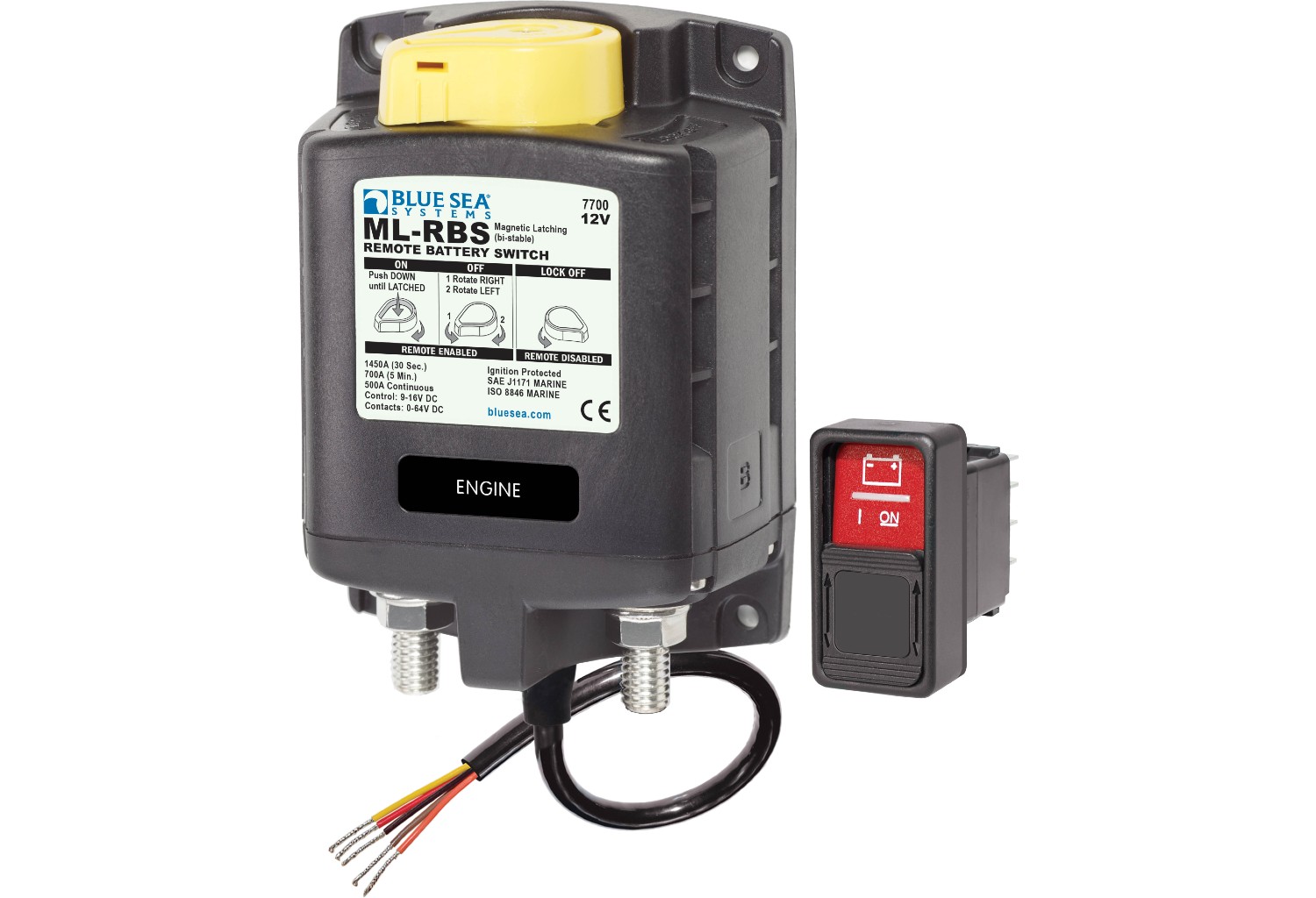

Blue Sea Systems Solenoid ML 500A 12V RBS With Manual Control

blueseas-7700

Blue Sea Systems Solenoid ML 500A 12V RBS With Manual Control

RRP
£241.90 ex VAT

Your Buy Price
£205.61 ex VAT

Price £205.61 (Ex VAT) Quantity

Product code: 7700-BSS

Manufacturer: Blue Sea Systems

500 Amp magnetic latching switch provides high amperage switching under load, manually or from remote locations

  • Manual override knob provides an added level of safety allowing control with or without power and offering LOCKED OFF capability for servicing
  • LED output to remotely indicate switch state - requires optional LED
  • 3∕ 8"-16 tin-plated copper studs for maximum conductivity and corrosion resistance
  • 7∕ 8" (22 mm) stud length accepts multiple cable terminals
  • Label recesses for circuit identification
  • Silver alloy contacts provide high reliability for switching live loads

*** For trade enquiries please contact us using the form below ***

Contact us

Installation Instructions

Download instructions

Specifications

Control Circuit Voltage 9-16V DC
Control Circuit Connection  Tinned Wire
Nominal Voltage 12V DC
Manual Control  Yes
Coil Function  Bi-Stable
Mounting #10
Amperage Operating Current 0mA
Amperage Operating Current when changing state <7A (40 ms)
Terminal Stud Torque 140 in-lb (15.82 Nm)
Continuous Rating  500A
Intermittent Rating  700A (5 min)
Cranking Rating 30 sec  1450A DC
Minimum Operating Temperature -10° C
Maximum Operating Temperature 60° C
Cable Size to Meet Ratings 2x (4/0)
Live Current Switching 300A @ 12V DC
Master Control Switch Capability No
Mechanical Endurance 100,000 Cycles
Terminal Ring Diameter Clearance 1.18in (29.97 mm)
Terminal Stud Length 0.875in (22.23 mm)
Terminal Stud Size 3/8" - 16 (M10)
Weight 2.05lb (0.93 kg)
