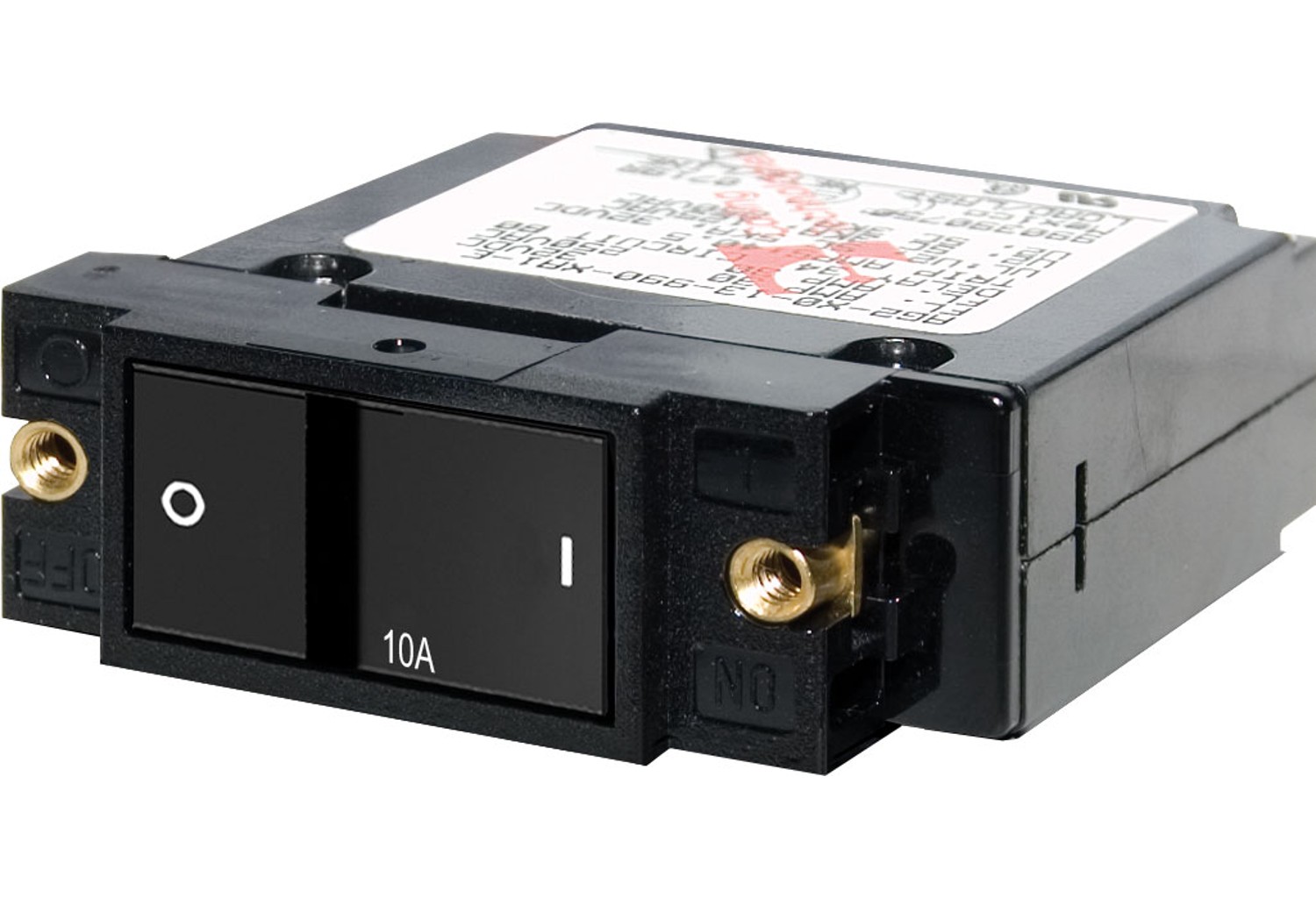

Blue Sea Systems Circuit Breaker A-Series Single Pole Flat Rocker 10A

blueseas-7402

Blue Sea Systems Circuit Breaker A-Series Single Pole Flat Rocker 10A

RRP
ex VAT

Please ask for Availability

Contact Us

Product code: 7402-BSS

Manufacturer: Blue Sea Systems

Rocker actuator is flush in the “ON” position, eliminating the risk of accidential switching

Color actuator indicates “OFF” position

“Trip Free” design cannot be held “ON” during fault current condition

2 different actuator styles available

Prevents accidental switching of 24 hour circuits

International ON/OFF symbols support vertical or horizontal mounting

*** For trade enquiries please contact us using the form below ***

Contact us

Specifications

Amperage 10A AC
10A DC
Actuator Style  Flat Rocker
Poles 1
Maximum Voltage 240V AC
32V DC
Circuit Breaker Type Magnetic Hydraulic - trip free
Interrupt Capacity  3000A @ 125V AC
1500A @ 240V AC
5000A @ 32V DC
Minimum Operating Temperature -40° C
Maximum Operating Temperature 85° C
Mounting Screw #6-32 Stainless Steel
Mounting Screw Torque 6 in-lb (0.68 Nm)
Screw Terminal Torque 14 in-lb (1.58 Nm)
Switching Cycles 10000
Terminal Screws #10-32 Stainless Steel
Weight 0.16lb (0.07 kg)
Weight 0.21lb (0.1 kg)

Specifications

Amperage 10A AC
10A DC
Actuator Style  Flat Rocker
Poles 1
Maximum Voltage 240V AC
32V DC
Circuit Breaker Type Magnetic Hydraulic - trip free
Interrupt Capacity  3000A @ 125V AC
1500A @ 240V AC
5000A @ 32V DC
Minimum Operating Temperature -40° C
Maximum Operating Temperature 85° C
Mounting Screw #6-32 Stainless Steel
Mounting Screw Torque 6 in-lb (0.68 Nm)
Screw Terminal Torque 14 in-lb (1.58 Nm)
Switching Cycles 10000
Terminal Screws #10-32 Stainless Steel
Weight 0.16lb (0.07 kg)
Weight 0.21lb (0.1 kg)
