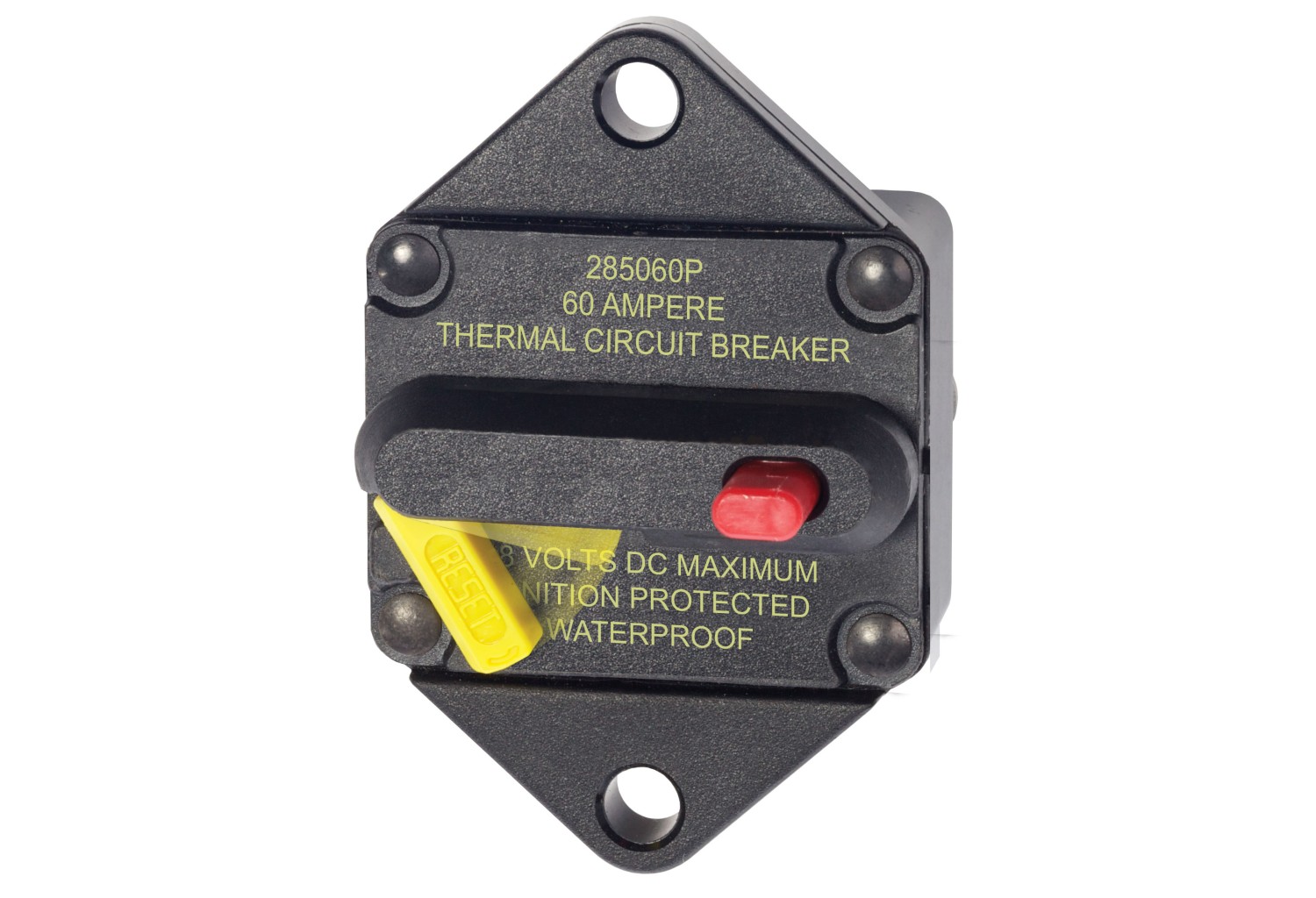

Blue Sea Systems Circuit Breaker, Bus 285 Panel 60A

RRP
ex VAT

Please ask for Availability

Product code: 7084-BSS

Manufacturer: Blue Sea Systems

Drop in replacement for 185-Series Circuit Breakers

Visible reset lever shows open condition

Ignition protected - Safe for installation aboard gasoline powered boats

Meets SAE J1171 external ignition protection requirements

Weather Resistant

Combines switching and circuit breaker function into one unit*

"Trip Free" - cannot be held closed after trip

* Do not use as a switch where high inrush currents are expected.

*** For trade enquiries please contact us using the form below ***

Specifications
Amperage	60A
Maximum Voltage	48V DC
Mounting	Panel Mount
Circuit Breaker Type	Thermally responsive Bi-metal blade
Terminal Stud	M6 (accepts 1/4" Ring Terminal)
Terminal Stud Torque	50 in-lb (5.65 Nm)
Interrupt Capacity	3000A @ 48V
Minimum Operating Temperature	-40° C
Maximum Operating Temperature	85° C
Circuit Breaker Class	Type III - switchable/manual reset - trip free
Weight	0.50lb (0.23 kg)

Specifications
Amperage	60A
Maximum Voltage	48V DC
Mounting	Panel Mount
Circuit Breaker Type	Thermally responsive Bi-metal blade
Terminal Stud	M6 (accepts 1/4" Ring Terminal)
Terminal Stud Torque	50 in-lb (5.65 Nm)
Interrupt Capacity	3000A @ 48V
Minimum Operating Temperature	-40° C
Maximum Operating Temperature	85° C
Circuit Breaker Class	Type III - switchable/manual reset - trip free
Weight	0.50lb (0.23 kg)
