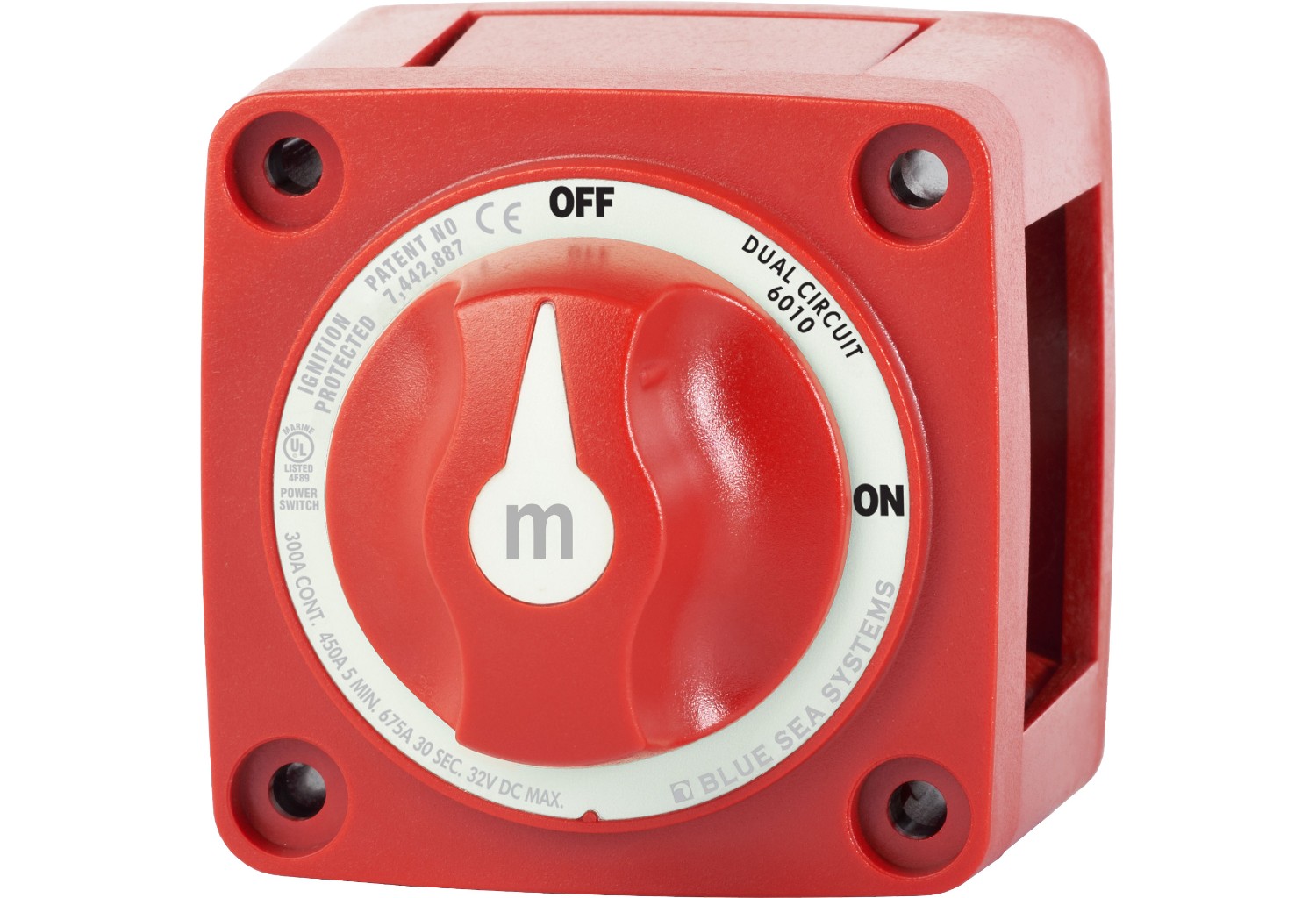

Blue Sea Systems Switch Battery m-Series Dual Circuit
Blue Sea Systems Switch Battery m-Series Dual Circuit
RRP ex VAT
Please ask for AvailabilityProduct code: 6010-BSS
Manufacturer: Blue Sea Systems
Simultaneously switches two isolated battery banks
*** For trade enquiries please contact us using the form below ***
Installation Instructions
Specifications |
||||
|---|---|---|---|---|
| Switch Type | Dual Circuit | |||
| Color | Red | |||
| Switch Positions | 2 | |||
| Battery Combine | No | |||
| Alternator Field Disconnect | No | |||
| Maximum Voltage | 32V DC | |||
| Stud Size | 3/8" | |||
| Terminal Stud Torque | 120 in-lb (13.56 Nm) | |||
| Continuous Rating | 300A | |||
| Intermittent Rating | 450A (5 min) | |||
| Cranking Rating 30 sec | 675A per circuit | |||
| Battery Inputs | 2 | |||
| Cable Clearance For 4/0 AWG Cables | 1.12in (28.45 mm) | |||
| Cable Size to Meet Ratings | 4/0 AWG (120mm²) | |||
| Mounting Holes | Accept #10 Screw | |||
| Stud Material | Tinned Copper | |||
| Stud Torque | 120 in-lb (13.56 Nm) | |||
| Terminal Stud Size | 3/8" - 16 (M10) | |||
| Weight | 0.80lb (0.36 kg) | |||
|
|
|||
Features
- Simultaneously switches two isolated battery banks or circuits. May be used to switch the positive and negative conductors for required applications.
- Tin-plated copper studs for maximum conductivity and corrosion resistance
- Studs accept 3/8" (M10) ring terminals
- One-piece terminal stud design never loosens over time
- Isolating cover with three snap-off side pieces protects rear contacts and allows wire access in any direction
Installation Instructions
Specifications |
||||
|---|---|---|---|---|
| Switch Type | Dual Circuit | |||
| Color | Red | |||
| Switch Positions | 2 | |||
| Battery Combine | No | |||
| Alternator Field Disconnect | No | |||
| Maximum Voltage | 32V DC | |||
| Stud Size | 3/8" | |||
| Terminal Stud Torque | 120 in-lb (13.56 Nm) | |||
| Continuous Rating | 300A | |||
| Intermittent Rating | 450A (5 min) | |||
| Cranking Rating 30 sec | 675A per circuit | |||
| Battery Inputs | 2 | |||
| Cable Clearance For 4/0 AWG Cables | 1.12in (28.45 mm) | |||
| Cable Size to Meet Ratings | 4/0 AWG (120mm²) | |||
| Mounting Holes | Accept #10 Screw | |||
| Stud Material | Tinned Copper | |||
| Stud Torque | 120 in-lb (13.56 Nm) | |||
| Terminal Stud Size | 3/8" - 16 (M10) | |||
| Weight | 0.80lb (0.36 kg) | |||
|
|
|||
Features
- Simultaneously switches two isolated battery banks or circuits. May be used to switch the positive and negative conductors for required applications.
- Tin-plated copper studs for maximum conductivity and corrosion resistance
- Studs accept 3/8" (M10) ring terminals
- One-piece terminal stud design never loosens over time
- Isolating cover with three snap-off side pieces protects rear contacts and allows wire access in any direction
