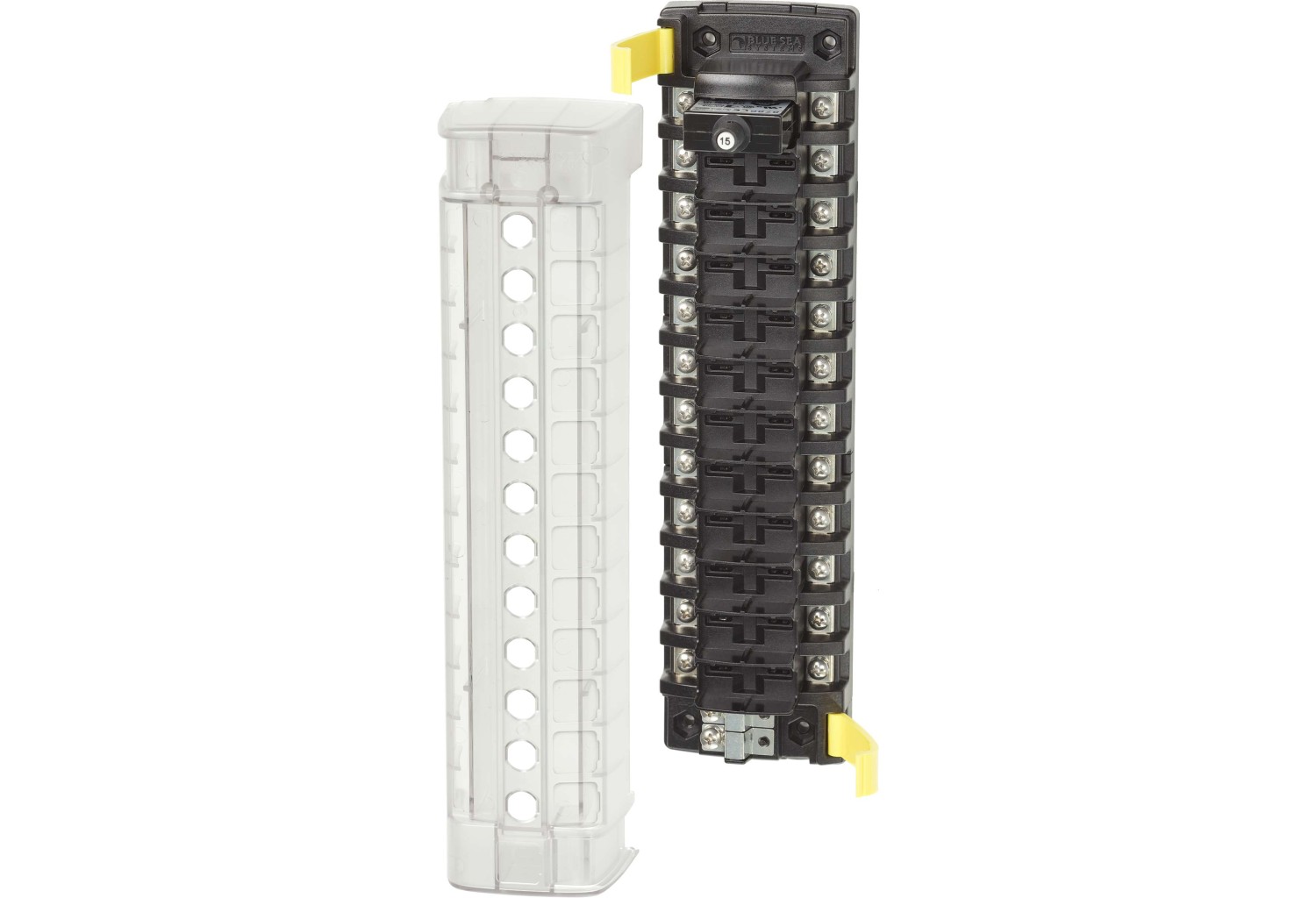

Blue Sea Systems Circuit Breaker Block ST CLB 12 Independent Circuits
Blue Sea Systems Circuit Breaker Block ST CLB 12 Independent Circuits
RRP ex VAT
Please ask for AvailabilityProduct code: 5051-BSS
Manufacturer: Blue Sea Systems
The advantage of a resettable circuit breaker over a fuse is well known however people find circuit breakers more expensive and difficult to install. The ST CLB Circuit Breaker Block solves this issue by using the compact, snap-in-place CLB resettable circuit breaker which makes breakers as easy to install as a fuse.
*** For trade enquiries please contact us using the form below ***
Specifications |
|
|---|---|
| Circuits | 12 |
| Maximum Amperage | 32A (per circuit) 40A (per jumped circuit group) |
| Maximum Voltage | 32V DC |
| Mounting | #8 Screw (M4) or #8 Nut |
| Source | Independent Source |
| Minimum Operating Temperature | -10° C |
| Maximum Operating Temperature | 60° C |
| Mounting Centers | 10.13in (257.3 mm) |
| Screw Terminal Type | #8-32 Screws with Captive Star Lock Washer |
| Height | 11.19in (284.23 mm) |
| Weight | 1.50lb (0.68 kg) |
Features
- Quick connect clips allow circuit breakers to snap easily into place
- Tin-plated copper busses and screw terminals
- Clear insulating cover with square format label recesses, satisfies ABYC/USCG insulation requirements
- Easy to open clip on cover
- Breakouts allow wire access in two directions
- Accepts ring terminals
- Optional push button waterproof boots or dress nuts can be installed over cover
- Accepts square labels
Specifications |
|
|---|---|
| Circuits | 12 |
| Maximum Amperage | 32A (per circuit) 40A (per jumped circuit group) |
| Maximum Voltage | 32V DC |
| Mounting | #8 Screw (M4) or #8 Nut |
| Source | Independent Source |
| Minimum Operating Temperature | -10° C |
| Maximum Operating Temperature | 60° C |
| Mounting Centers | 10.13in (257.3 mm) |
| Screw Terminal Type | #8-32 Screws with Captive Star Lock Washer |
| Height | 11.19in (284.23 mm) |
| Weight | 1.50lb (0.68 kg) |
Features
- Quick connect clips allow circuit breakers to snap easily into place
- Tin-plated copper busses and screw terminals
- Clear insulating cover with square format label recesses, satisfies ABYC/USCG insulation requirements
- Easy to open clip on cover
- Breakouts allow wire access in two directions
- Accepts ring terminals
- Optional push button waterproof boots or dress nuts can be installed over cover
- Accepts square labels
