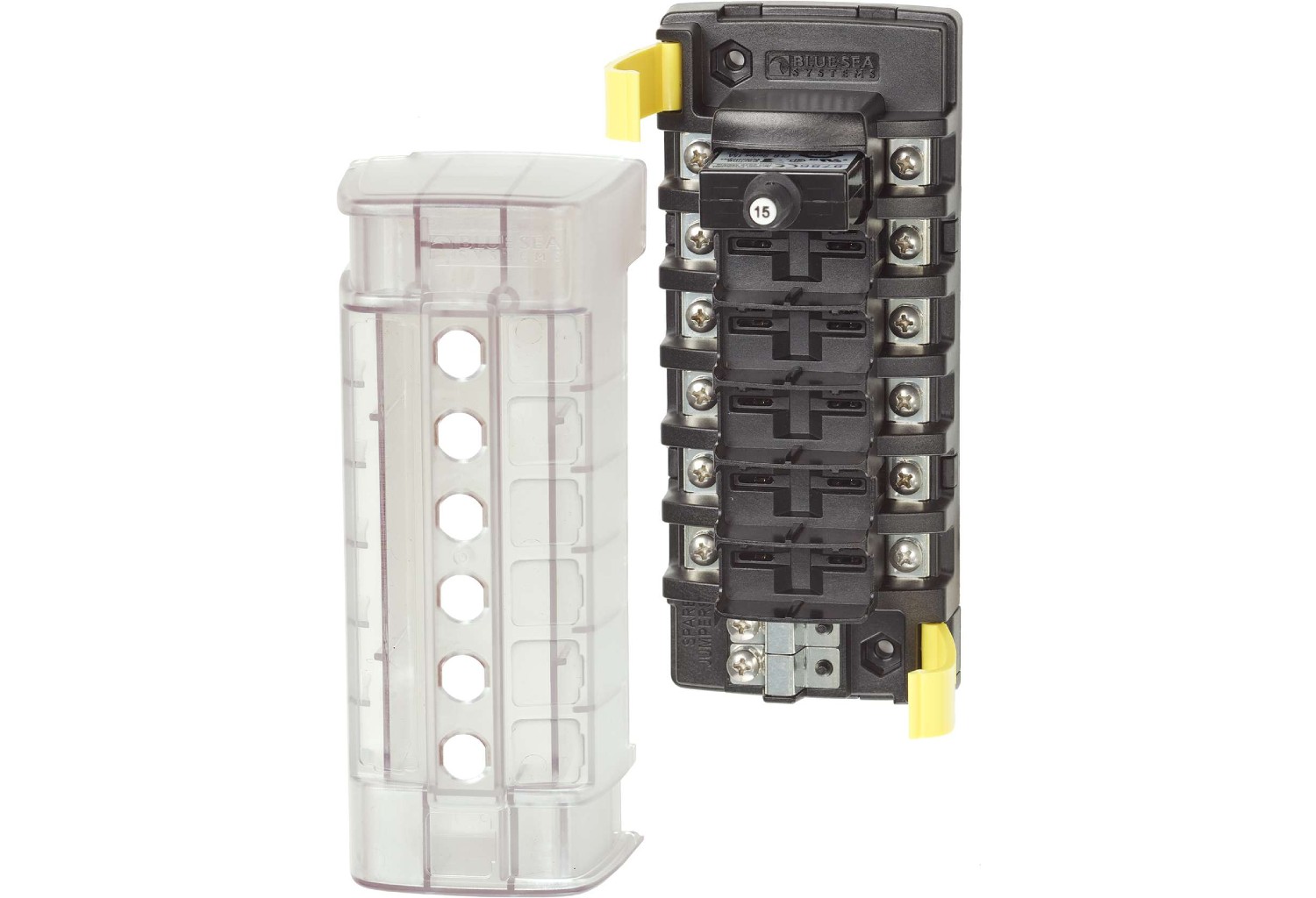

Blue Sea Systems Circuit Breaker Block ST CLB 6 Independent Circuits

blueseas-5050

Blue Sea Systems Circuit Breaker Block ST CLB 6 Independent Circuits

RRP
£51.90 ex VAT

Your Buy Price
£44.11 ex VAT

Price £44.11 (Ex VAT) Quantity

Product code: 5050-BSS

Manufacturer: Blue Sea Systems

The advantage of a resettable circuit breaker over a fuse is well known however people find circuit breakers more expensive and difficult to install. The ST CLB Circuit Breaker Block solves this issue by using the compact, snap-in-place CLB resettable circuit breaker which makes breakers as easy to install as a fuse.

*** For trade enquiries please contact us using the form below ***

Contact us

Specifications

Circuits 6
Maximum Amperage  32A (per circuit)
40A (per jumped circuit group)
Maximum Voltage 32V DC
Mounting #8 Screw (M4) or #8 Nut
Source Independent Source
Minimum Operating Temperature -10° C
Maximum Operating Temperature 60° C
Mounting Centers 5.63in (143 mm)
Screw Terminal Type #8-32 Screws with Captive Star Lock Washer
Height 6.69in (169.93 mm)
Weight 0.75lb (0.34 kg)

Features

  • Quick connect clips allow circuit breakers to snap easily into place
  • Tin-plated copper busses and screw terminals
  • Clear insulating cover with square format label recesses, satisfies ABYC/USCG insulation requirements
  • Easy to open clip on cover
  • Breakouts allow wire access in two directions
  • Accepts ring terminals
  • Optional push button waterproof boots or dress nuts can be installed over cover
  • Accepts square labels

Specifications

Circuits 6
Maximum Amperage  32A (per circuit)
40A (per jumped circuit group)
Maximum Voltage 32V DC
Mounting #8 Screw (M4) or #8 Nut
Source Independent Source
Minimum Operating Temperature -10° C
Maximum Operating Temperature 60° C
Mounting Centers 5.63in (143 mm)
Screw Terminal Type #8-32 Screws with Captive Star Lock Washer
Height 6.69in (169.93 mm)
Weight 0.75lb (0.34 kg)

Features

  • Quick connect clips allow circuit breakers to snap easily into place
  • Tin-plated copper busses and screw terminals
  • Clear insulating cover with square format label recesses, satisfies ABYC/USCG insulation requirements
  • Easy to open clip on cover
  • Breakouts allow wire access in two directions
  • Accepts ring terminals
  • Optional push button waterproof boots or dress nuts can be installed over cover
  • Accepts square labels
