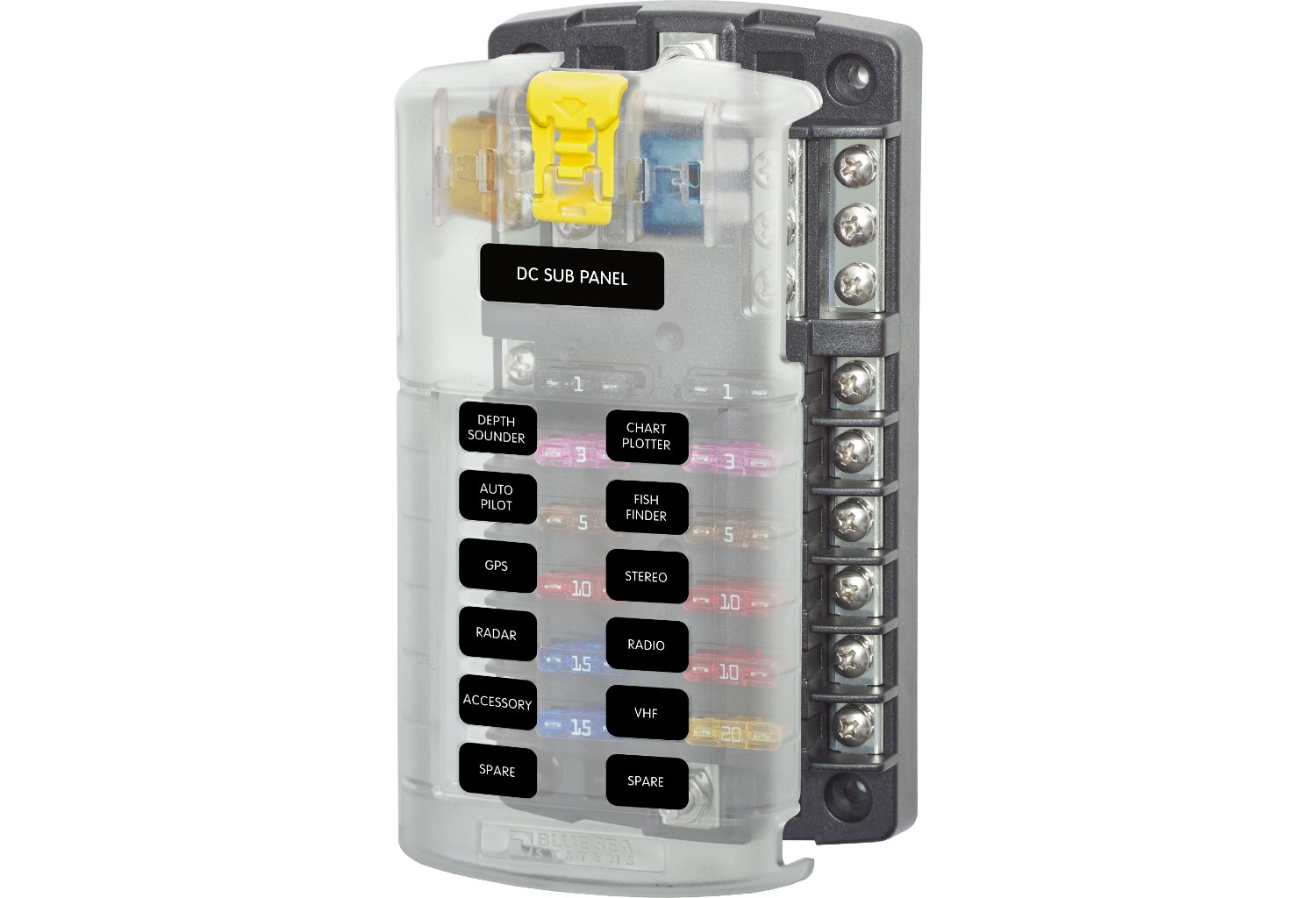

Blue Sea Systems Fuse Block ST-Blade 12 Circuits with Grounding/cvr
Blue Sea Systems Fuse Block ST-Blade 12 Circuits with Grounding/cvr
RRP ex VAT
Please ask for AvailabilityProduct code: 5026-BSS
Manufacturer: Blue Sea Systems
Consolidates branch circuits and in-line fuses
Positive distribution bus with #10-32 stud
Can be used for 24-hour circuits
Models available with or without a cover
Cover satisfies ABYC/USCG requirements for insulation, incorporates an easy to open push button latch providing easy access to fuses, storage for two spare fuses, and label recesses that accept Blue Sea Systems" Small Format Labels for circuit identification
Fuse blocks with covers include 20 write-on circuit labels
Tin-plated copper buses and fuse clips
Accepts ring or snap fork type terminals
Accepts ATO® and ATC® fast acting blade fuses
Fuses sold separately
*** For trade enquiries please contact us using the form below ***
Specifications |
|
|---|---|
| Circuits | 12 |
| Maximum Amperage | 100A per block 30A per circuit |
| Maximum Voltage | 32V DC |
| Mounting | #8 Screw (M4) |
| Negative Bus | #10-32 Stud |
| Positive Bus | #10-32 Stud |
| Recommended Torque | 24 in-lb (2.71 N·m) |
| Screw Terminal Torque | 18 in-lb (2.03 Nm) |
| Screw Terminal Type | #8-32 Screws with captive star lock washer |
| Weight | 0.75lb (0.34 kg) |
Specifications |
|
|---|---|
| Circuits | 12 |
| Maximum Amperage | 100A per block 30A per circuit |
| Maximum Voltage | 32V DC |
| Mounting | #8 Screw (M4) |
| Negative Bus | #10-32 Stud |
| Positive Bus | #10-32 Stud |
| Recommended Torque | 24 in-lb (2.71 N·m) |
| Screw Terminal Torque | 18 in-lb (2.03 Nm) |
| Screw Terminal Type | #8-32 Screws with captive star lock washer |
| Weight | 0.75lb (0.34 kg) |
