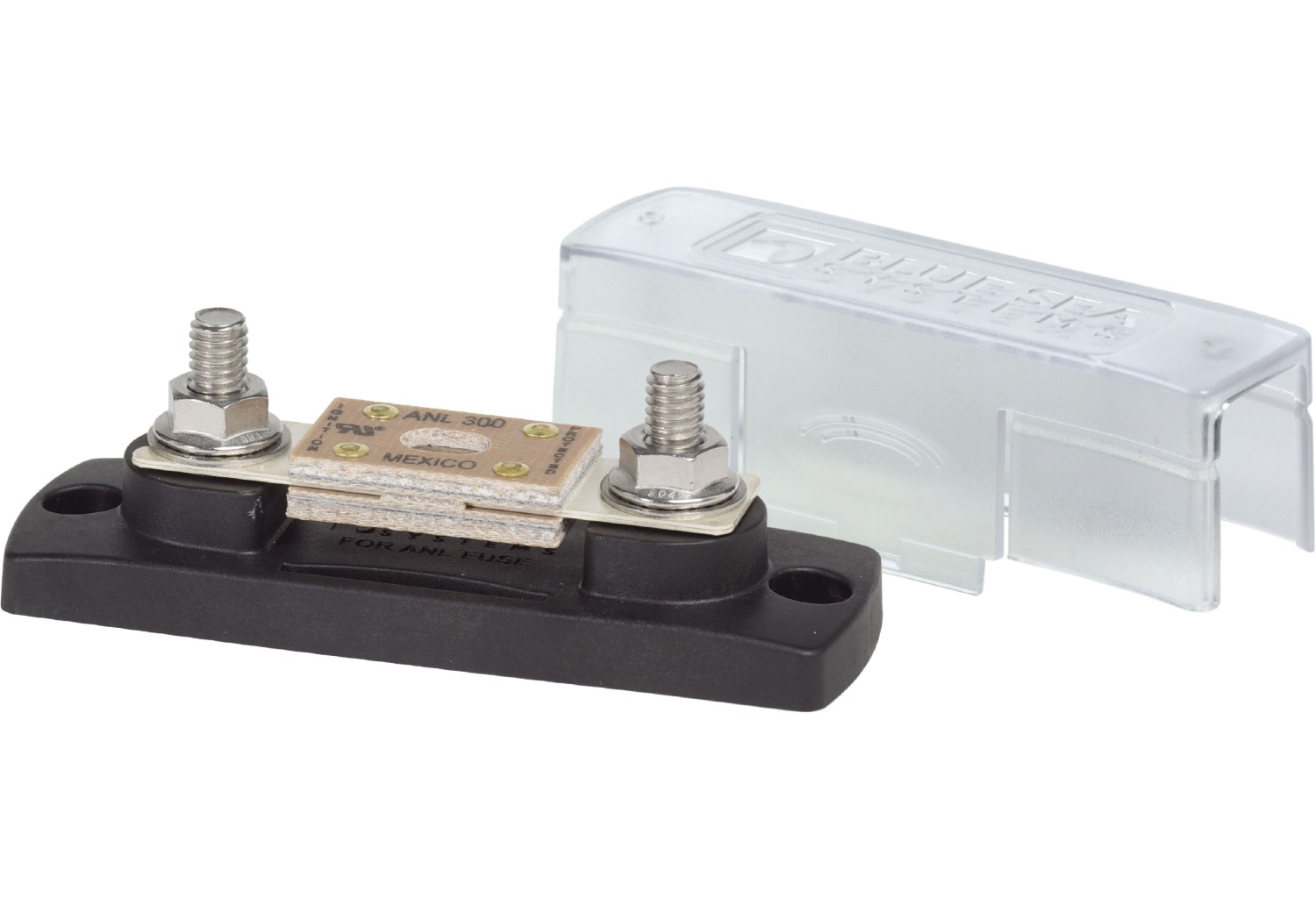

Blue Sea Systems Fuse Block ANL 35-300A with cover

blueseas-5005

Blue Sea Systems Fuse Block ANL 35-300A with cover

RRP
ex VAT

Please ask for Availability

Contact Us

Product code: 5005-BSS

Manufacturer: Blue Sea Systems

Accepts 5/16" (M8) ring terminals

For use on systems up to 32 Volts DC

Swing out design allows replacement of the fuse without removing fasteners

Stainless steel studs provide resistance to corrosion and high torquing for excellent electrical contact

UL 94-V0 base resists high heat

Insert molded studs ensure secure fuse mounting

Insulating cover satisfies ABYC/USCG requirements

Cover breakouts allow wire access in any direction

Fuse sold separately

*** For trade enquiries please contact us using the form below ***

Contact us

Specifications
Maximum Voltage 32V DC
Base Material Reinforced Polycarbonate
Fuse Mounting Blocks Tin-Plated Copper
Maximum Cable Size 2/0 AWG
Maximum Torque 110 in-lb (12.43 Nm)
Terminal Stud Size 5/16" - 18 (M8)
Weight 0.35lb (0.16 kg)

Specifications
Maximum Voltage 32V DC
Base Material Reinforced Polycarbonate
Fuse Mounting Blocks Tin-Plated Copper
Maximum Cable Size 2/0 AWG
Maximum Torque 110 in-lb (12.43 Nm)
Terminal Stud Size 5/16" - 18 (M8)
Weight 0.35lb (0.16 kg)
