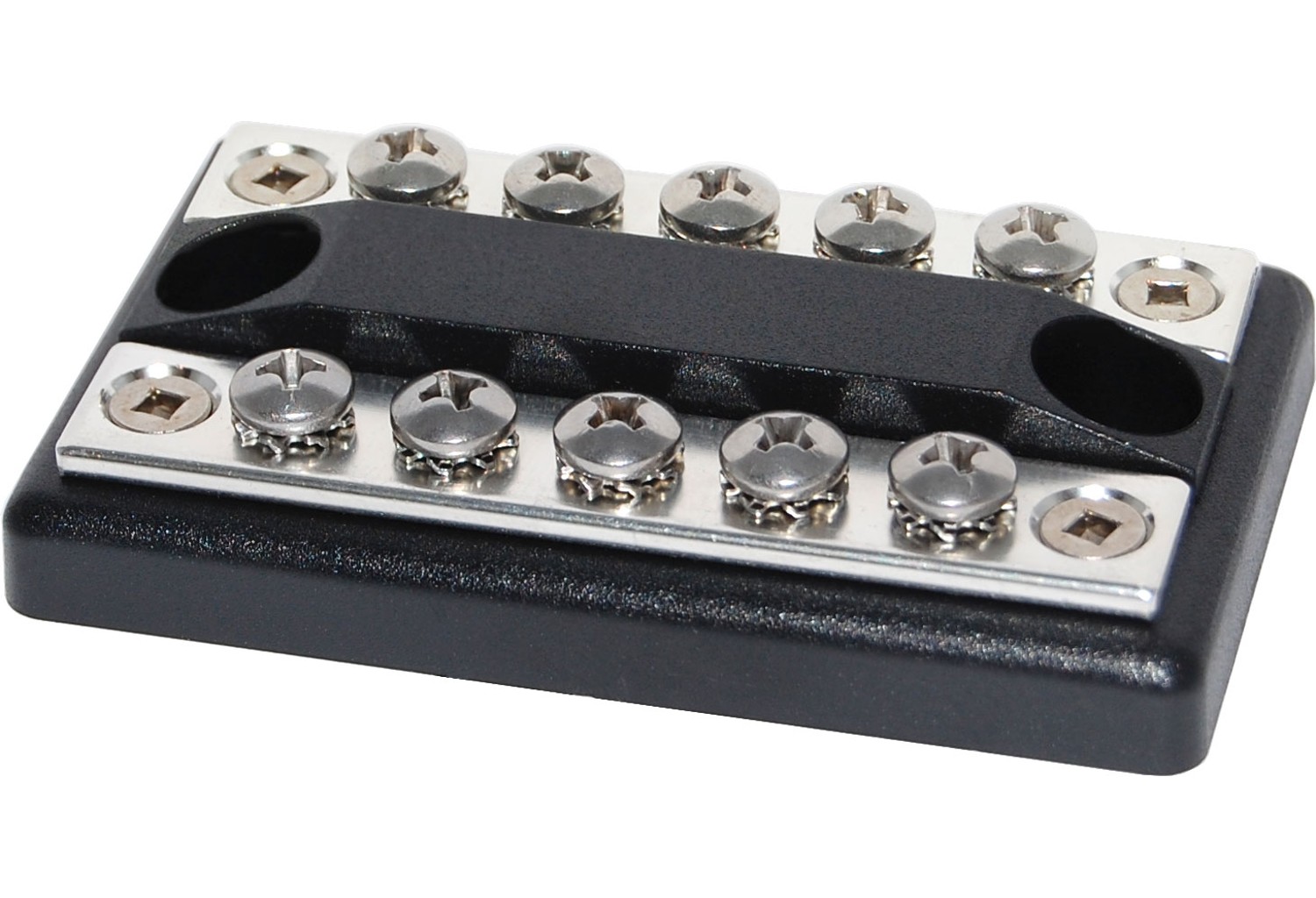

Blue Sea Systems DualBus Com +/- 5 Circuits
Product code: 2701-BSS
Manufacturer: Blue Sea Systems
Combines negative and positive buses on one block
*** For trade enquiries please contact us using the form below ***
Specifications |
|
|---|---|
| Maximum Voltage | 300V AC 48V DC |
| Number of Screw Terminals | 5 per bus |
| Terminal Type | #8-32 Screw |
| Continuous Rating | 100A |
| Base Material | UL 94-V0 Rated, Glass Reinforced Thermoplastics |
| Bus Material | Tin-Plated Copper CDA 110 / UNS 11000 |
| Screw Terminal Torque | 15 in-lb (1.69 Nm) |
| Height | 5⁄8 in (15.88 mm) |
| Weight | 0.17lb (0.08 kg) |
| Weight | 0.21lb (0.1 kg) |
Specifications |
|
|---|---|
| Maximum Voltage | 300V AC 48V DC |
| Number of Screw Terminals | 5 per bus |
| Terminal Type | #8-32 Screw |
| Continuous Rating | 100A |
| Base Material | UL 94-V0 Rated, Glass Reinforced Thermoplastics |
| Bus Material | Tin-Plated Copper CDA 110 / UNS 11000 |
| Screw Terminal Torque | 15 in-lb (1.69 Nm) |
| Height | 5⁄8 in (15.88 mm) |
| Weight | 0.17lb (0.08 kg) |
| Weight | 0.21lb (0.1 kg) |
