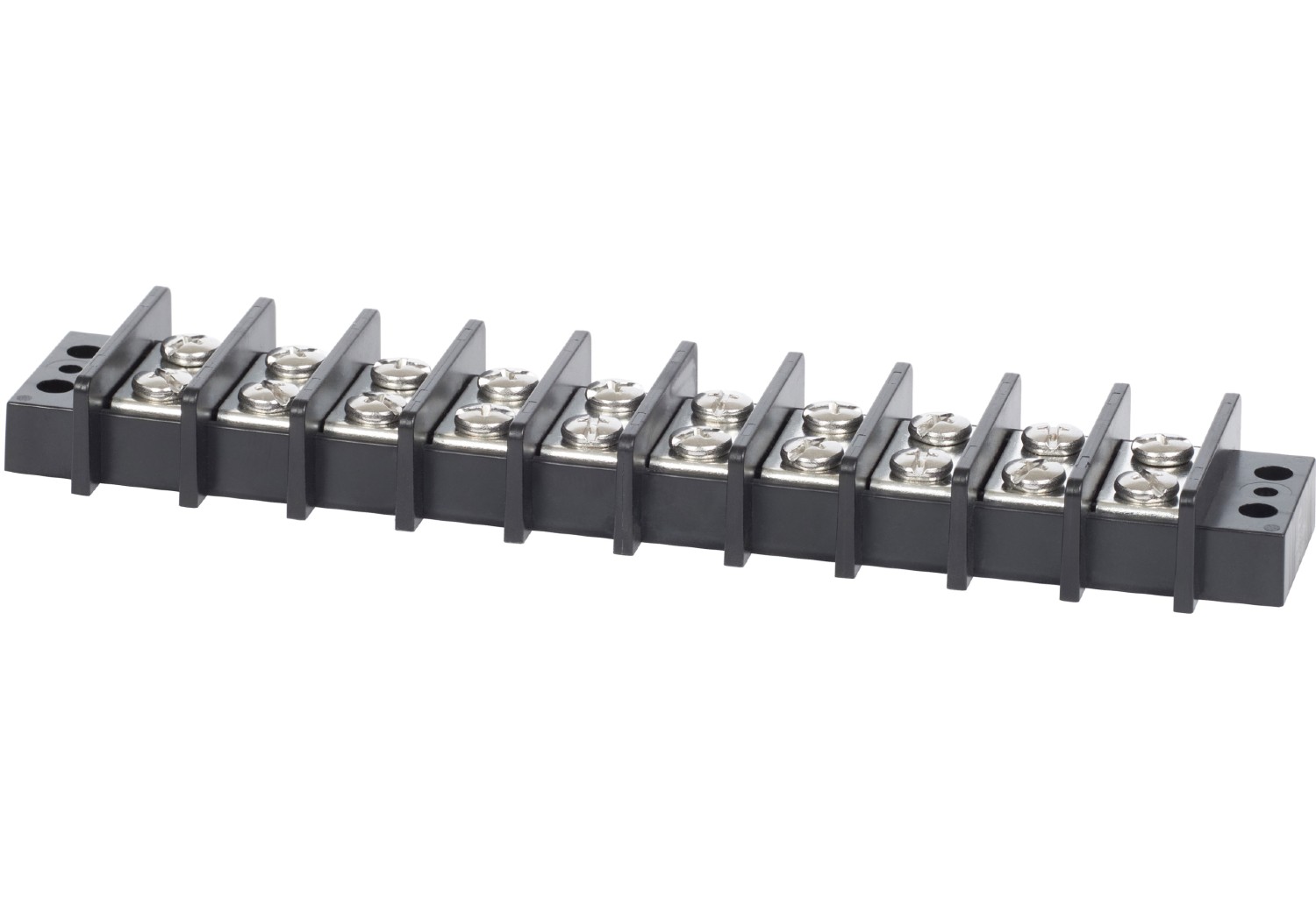

Blue Sea Systems Terminal Block/Ind 10circ 65A
Product code: 2610-BSS
Manufacturer: Blue Sea Systems
Closed back design completely insulates power from the mounting surface
Each screw pair is one isolated circuit
Jumpers allow creation of common circuits
*** For trade enquiries please contact us using the form below ***
Specifications |
|
|---|---|
| Circuits | 10 |
| Length | 8.01in (203.45 mm) |
| Maximum Voltage | 600V AC/DC |
| Continuous Rating | 65A |
| Base Material | UL 94 V0, PC |
| Bus Material | Nickel-Plated Brass |
| Mounting Screw | #10 [M5] |
| Screw Material | Stainless Steel |
| Screw Size | #10-32 |
| Screw Terminal Torque | 19 in-lb (2.15 Nm) |
| Terminal Screws | M5 |
| Wire Terminal Size | #10 [M5] |
| Weight | 0.52lb (0.24 kg) |
| Weight | 0.52lb (0.24 kg) |
Specifications |
|
|---|---|
| Circuits | 10 |
| Length | 8.01in (203.45 mm) |
| Maximum Voltage | 600V AC/DC |
| Continuous Rating | 65A |
| Base Material | UL 94 V0, PC |
| Bus Material | Nickel-Plated Brass |
| Mounting Screw | #10 [M5] |
| Screw Material | Stainless Steel |
| Screw Size | #10-32 |
| Screw Terminal Torque | 19 in-lb (2.15 Nm) |
| Terminal Screws | M5 |
| Wire Terminal Size | #10 [M5] |
| Weight | 0.52lb (0.24 kg) |
| Weight | 0.52lb (0.24 kg) |
