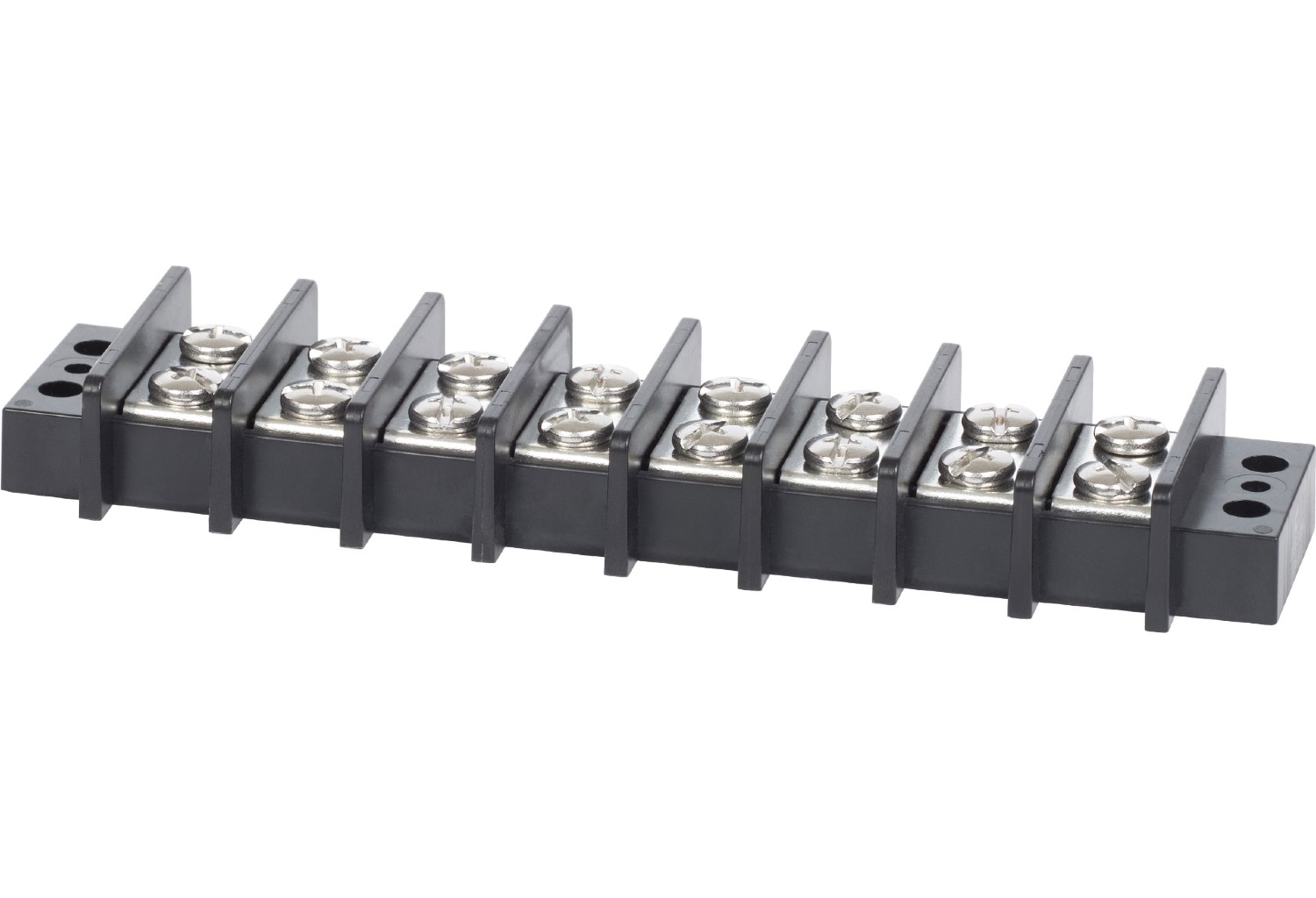

Blue Sea Systems Terminal Block/Ind 8circ 65A

blueseas-2608

Blue Sea Systems Terminal Block/Ind 8circ 65A

RRP
ex VAT

Please ask for Availability

Contact Us

Product code: 2608-BSS

Manufacturer: Blue Sea Systems

Closed back design completely insulates power from the mounting surface

Each screw pair is one isolated circuit

Jumpers allow creation of common circuits

*** For trade enquiries please contact us using the form below ***

Contact us

Specifications

Circuits 8
Length 6.63in (168.4 mm)
Maximum Voltage 600V AC/DC
Continuous Rating  65A
Base Material UL 94 V0, PC
Bus Material Nickel-Plated Brass
Mounting Screw #10 [M5]
Screw Material Stainless Steel
Screw Size #10-32
Screw Terminal Torque 17.5 in-lb (1.98 Nm)
Terminal Screws M5
Wire Terminal Size #10 [M5]
Weight 0.43lb (0.2 kg)
Weight 0.43lb (0.2 kg)
