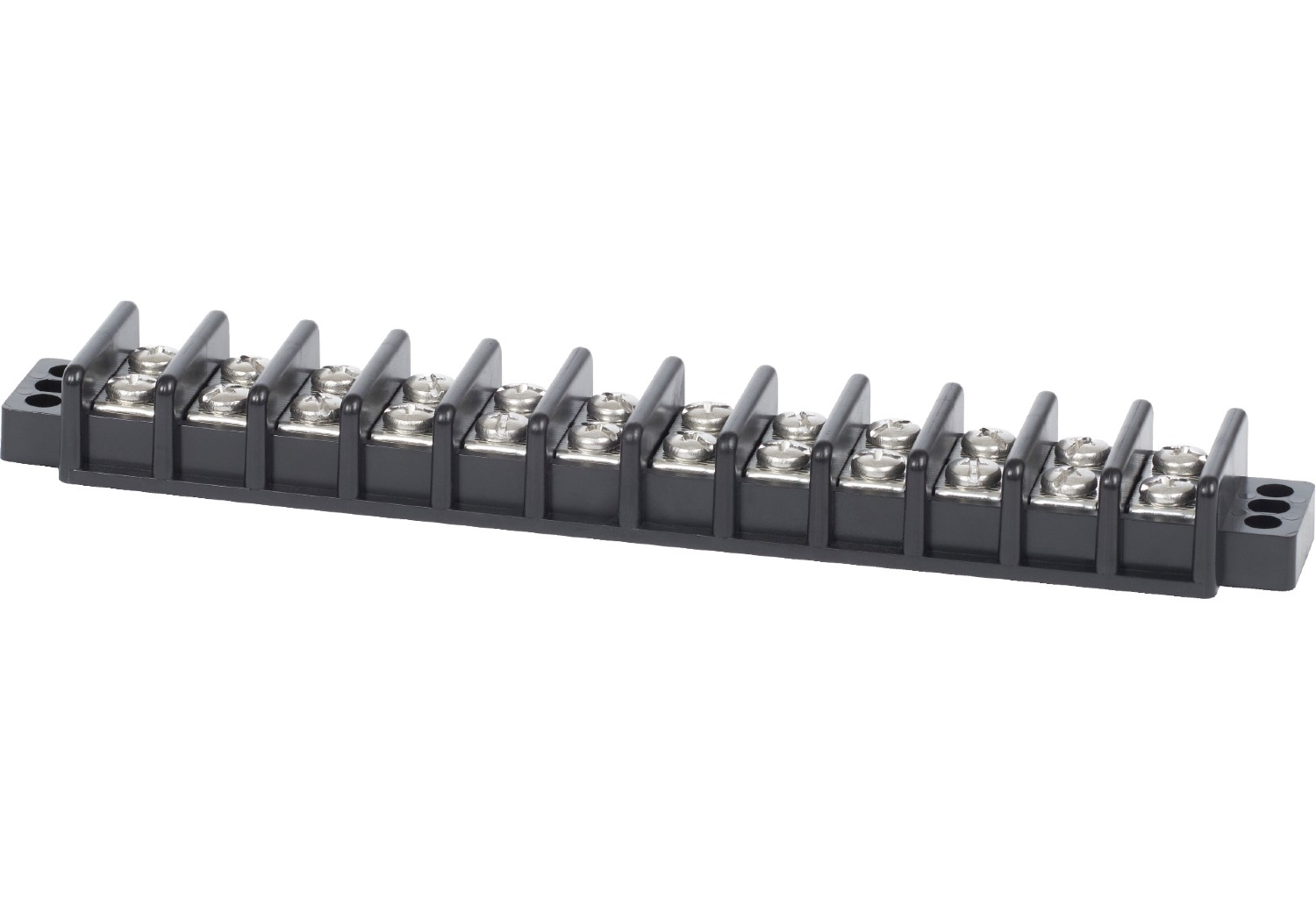

Blue Sea Systems Terminal Block/Independent 12 Circuits 30A
Blue Sea Systems Terminal Block/Independent 12 Circuits 30A
RRP ex VAT
Please ask for AvailabilityProduct code: 2512-BSS
Manufacturer: Blue Sea Systems
Closed back design completely insulates power from the mounting surface
Each screw pair is one isolated circuit
Jumpers allow creation of common circuits
*** For trade enquiries please contact us using the form below ***
Specifications |
|
|---|---|
| Circuits | 12 |
| Length | 7.75in (196.85 mm) |
| Maximum Voltage | 600V AC/DC |
| Continuous Rating | 30A |
| Base Material | UL 94 V0, PC |
| Bus Material | Nickel-Plated Brass |
| Mounting Screw | #10 [M5] |
| Screw Material | Stainless Steel |
| Screw Terminal Torque | 10 in-lb (1.13 Nm) |
| Terminal Screws | M4 |
| Wire Terminal Size | #8 [M4] |
| Weight | 0.44lb (0.2 kg) |
| Weight | 0.35lb (0.16 kg) |
Specifications |
|
|---|---|
| Circuits | 12 |
| Length | 7.75in (196.85 mm) |
| Maximum Voltage | 600V AC/DC |
| Continuous Rating | 30A |
| Base Material | UL 94 V0, PC |
| Bus Material | Nickel-Plated Brass |
| Mounting Screw | #10 [M5] |
| Screw Material | Stainless Steel |
| Screw Terminal Torque | 10 in-lb (1.13 Nm) |
| Terminal Screws | M4 |
| Wire Terminal Size | #8 [M4] |
| Weight | 0.44lb (0.2 kg) |
| Weight | 0.35lb (0.16 kg) |
