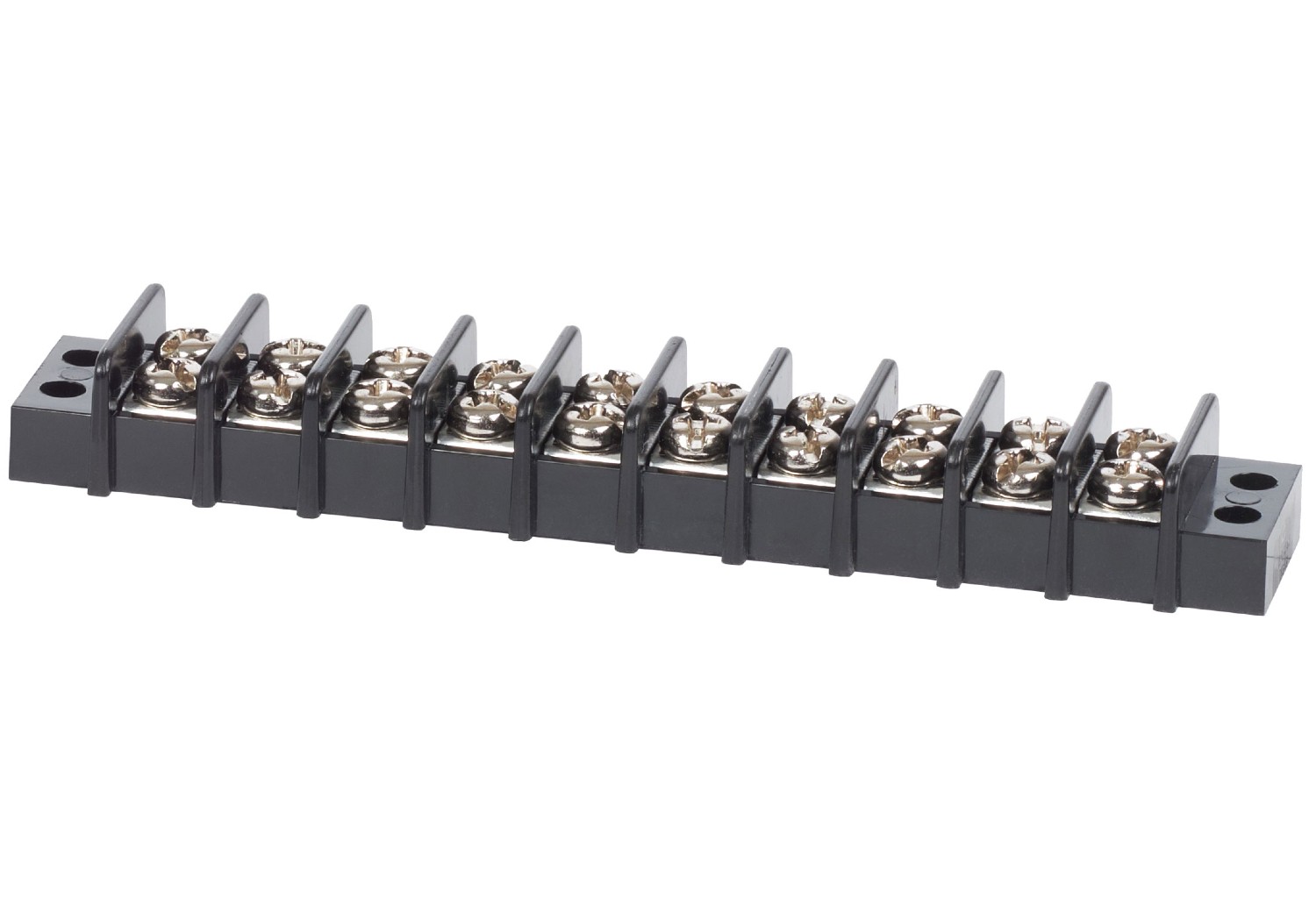

Blue Sea Systems Terminal Block/Independent 10 Circuits 20A
Blue Sea Systems Terminal Block/Independent 10 Circuits 20A
RRP ex VAT
Please ask for AvailabilityProduct code: 2410-BSS
Manufacturer: Blue Sea Systems
Closed back design completely insulates power from the mounting surface
Each screw pair is one isolated circuit
Jumpers allow creation of common circuits
*** For trade enquiries please contact us using the form below ***
Specifications |
|
|---|---|
| Circuits | 10 |
| Length | 4.41in (112.01 mm) |
| Maximum Voltage | 300V AC/DC |
| Continuous Rating | 20A |
| Base Material | UL 94 V0, PC |
| Bus Material | Nickel-Plated Brass |
| Mounting Screw | #6 [M3.5] |
| Screw Material | Stainless Steel |
| Screw Terminal Torque | 7 in-lb (0.79 Nm) |
| Terminal Screws | M3.5 |
| Wire Terminal Size | #6 [M3] |
| Weight | 0.13lb (0.06 kg) |
| Weight | 0.11lb (0.05 kg) |
Specifications |
|
|---|---|
| Circuits | 10 |
| Length | 4.41in (112.01 mm) |
| Maximum Voltage | 300V AC/DC |
| Continuous Rating | 20A |
| Base Material | UL 94 V0, PC |
| Bus Material | Nickel-Plated Brass |
| Mounting Screw | #6 [M3.5] |
| Screw Material | Stainless Steel |
| Screw Terminal Torque | 7 in-lb (0.79 Nm) |
| Terminal Screws | M3.5 |
| Wire Terminal Size | #6 [M3] |
| Weight | 0.13lb (0.06 kg) |
| Weight | 0.11lb (0.05 kg) |
