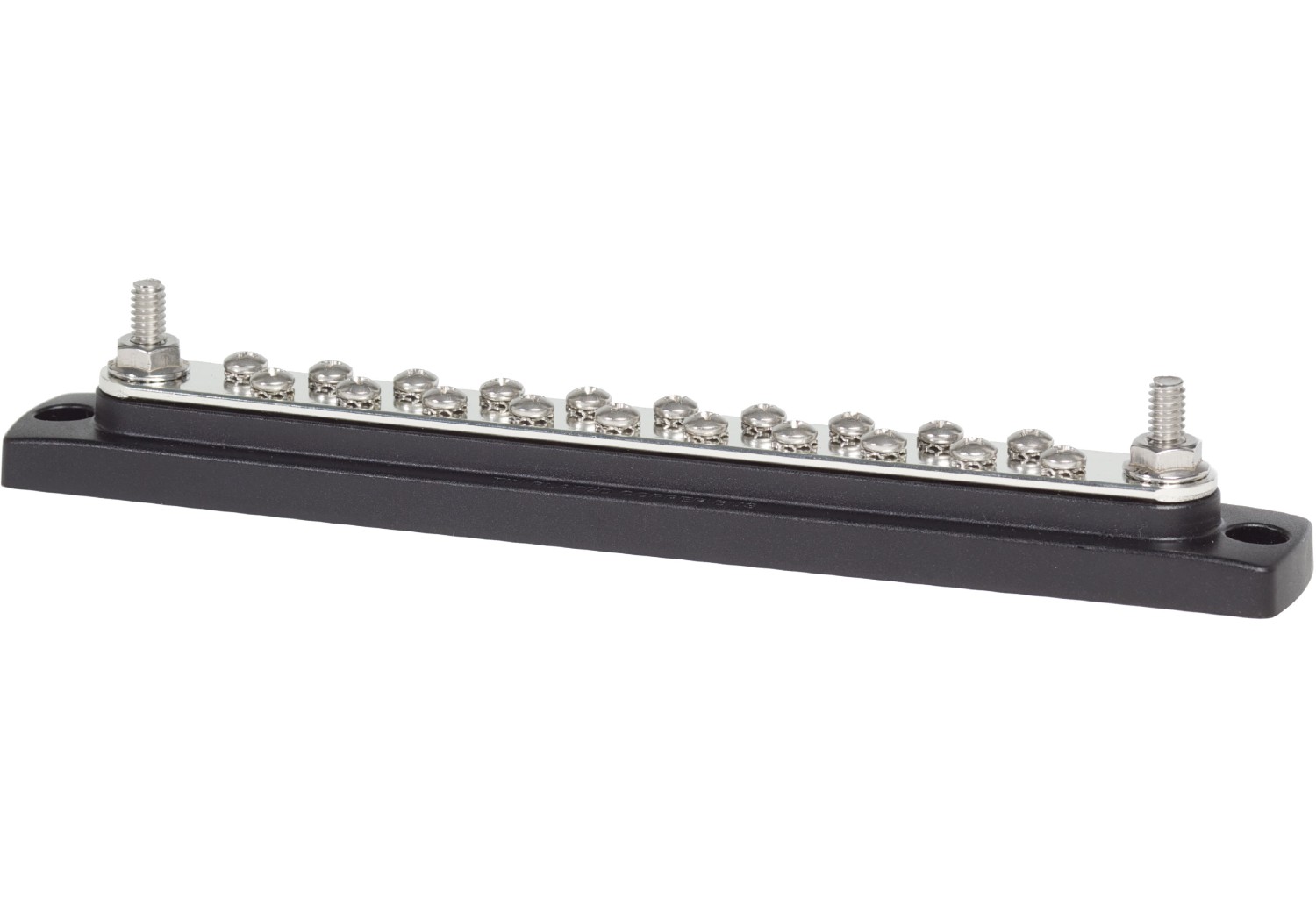

Blue Sea Systems BusBar 20 Gang Common Bus

blueseas-2302

Blue Sea Systems BusBar 20 Gang Common Bus

RRP
ex VAT

Please ask for Availability

Contact Us

Product code: 2302-BSS

Manufacturer: Blue Sea Systems

The industry standard busbar for positive distribution

The industry standard busbar for the collection of negative or AC ground circuits

*** For trade enquiries please contact us using the form below ***

Contact us

Specifications

Maximum Voltage 300V AC
48V DC
Number of Screw Terminals 20
Number of Terminal Studs 2
Terminal Type 1/4" Stud
#8-32 Screw
Continuous Rating  130A AC
150A DC
Base Material UL 94-V0 Rated, Glass Reinforced Thermoplastics
Bus Material Tin-Plated Copper CDA 110 / UNS 11000
Screw Terminal Torque 15 in-lb (1.69 Nm)
Stud Torque 60 in-lb (6.78 Nm)
Weight 0.53lb (0.24 kg)
Weight 0.51lb (0.23 kg)

Specifications

Maximum Voltage 300V AC
48V DC
Number of Screw Terminals 20
Number of Terminal Studs 2
Terminal Type 1/4" Stud
#8-32 Screw
Continuous Rating  130A AC
150A DC
Base Material UL 94-V0 Rated, Glass Reinforced Thermoplastics
Bus Material Tin-Plated Copper CDA 110 / UNS 11000
Screw Terminal Torque 15 in-lb (1.69 Nm)
Stud Torque 60 in-lb (6.78 Nm)
Weight 0.53lb (0.24 kg)
Weight 0.51lb (0.23 kg)
