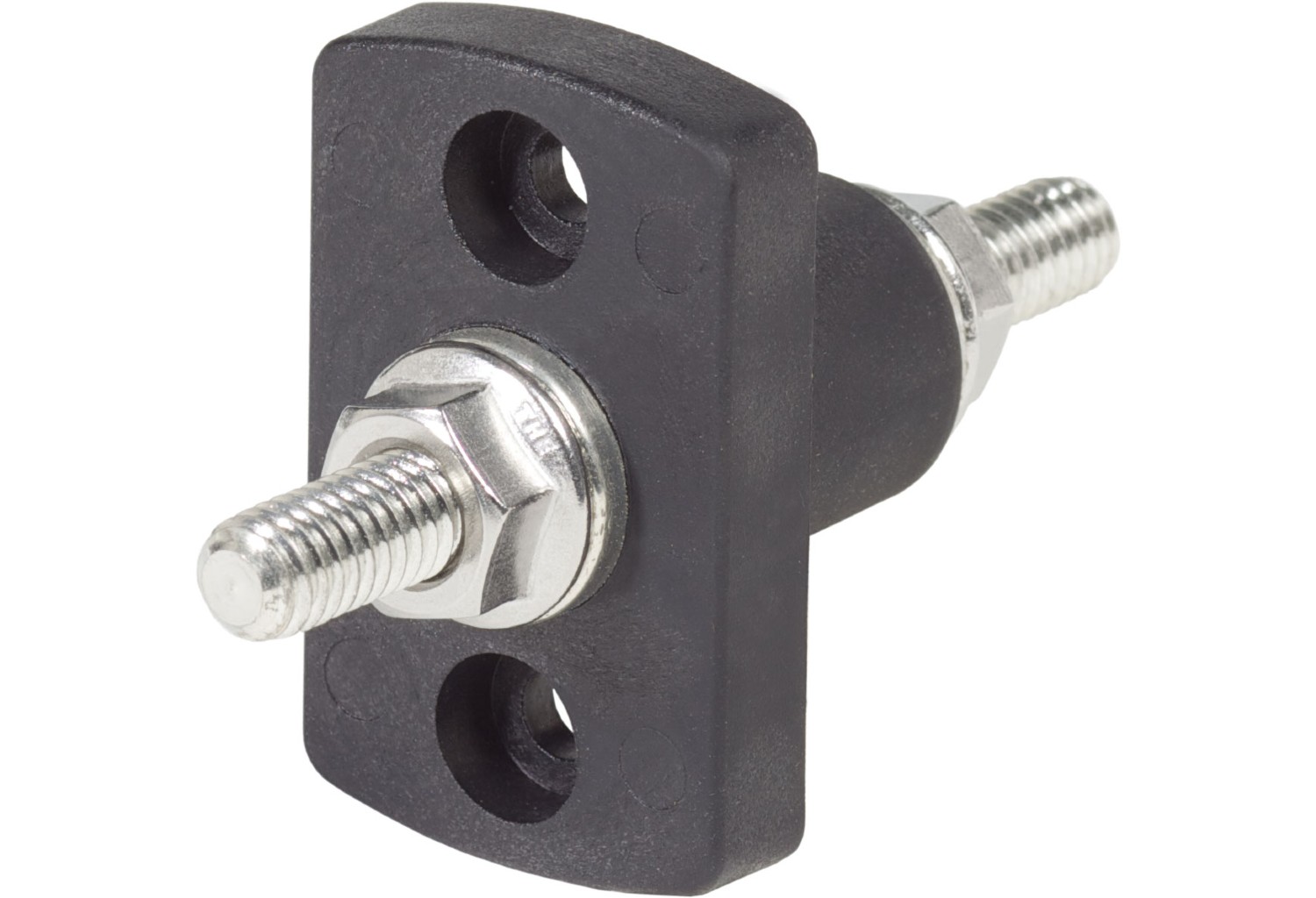

Blue Sea Systems TermSm FeedThrough 5/16-18 Stud Black

blueseas-2201

Blue Sea Systems TermSm FeedThrough 5/16-18 Stud Black

RRP
ex VAT

Please ask for Availability

Contact Us

Product code: 2201-BSS

Manufacturer: Blue Sea Systems

Eliminates chage and provides strain relief when passing high current through hulls, decks and bulkheads

  • Perfect for passing high current cables through hulls, decks and bulkheads
  • Large cables passed through holes are subject to chafing even when protective grommeting is used. Terminal Feed Through Connectors eliminate chafing and provide excellent strain relief for the cable
  • Large size terminals have a mounting face that can be gasketed or bedded to provide a water tight installation
  • Rated IP66 — withstands water from heavy seas

*** For trade enquiries please contact us using the form below ***

Contact us

Specifications
Amperage 250A
Color Black
Maximum Voltage 48V DC
Stud Size 5/16"-18
Base Material Reinforced Thermoplastic
Recommended Torque 100 in-lb (11.3 N·m)
Stud Material Tin-Plated Copper Alloy
Weight 0.30lb (0.14 kg)

Specifications
Amperage 250A
Color Black
Maximum Voltage 48V DC
Stud Size 5/16"-18
Base Material Reinforced Thermoplastic
Recommended Torque 100 in-lb (11.3 N·m)
Stud Material Tin-Plated Copper Alloy
Weight 0.30lb (0.14 kg)
