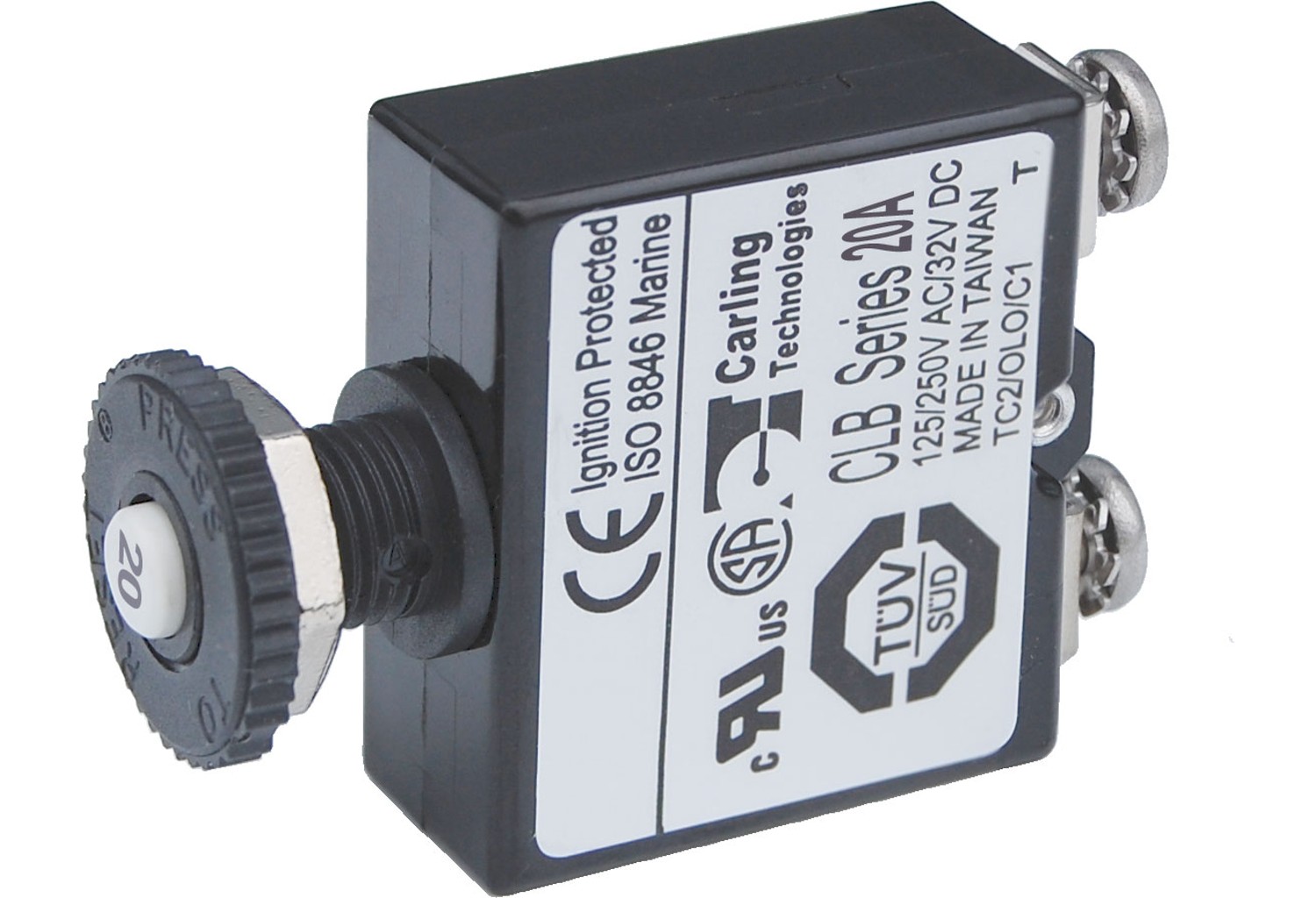

Blue Sea Systems Circuit Breaker Push Button ST 20A

blueseas-2134

Blue Sea Systems Circuit Breaker Push Button ST 20A

RRP
ex VAT

Please ask for Availability

Contact Us

Product code: 2134-BSS

Manufacturer: Blue Sea Systems

Branch circuit breakers (can also be used for 24-hour circuit protection)

Quick connect terminal style circuit breakers are incorporated into Blue Sea Systems WeatherDeck Waterproof Circuit Breaker Panels, Dual Battery Bank Main Distribution Panels, and 360 Distribution Panels

Compact design enables high density circuit protection configurations

Push-to-reset operation

“Trip Free” design cannot be held “ON” during fault current condition

Ignition protected - Safe for installation aboard gasoline powered boats

Optional Push Button Waterproof Boot protects circuit breaker in wet environments, replaces dress nut mounting on circuit breakers and resists discoloration and cracking

*** For trade enquiries please contact us using the form below ***

Contact us

Specifications

Amperage 20A
Maximum Voltage 32V DC
Mounting Panel Mount 3/8-27 UNS
Circuit Breaker Type Thermal trip, manual push-button reset only
Terminal Type #8 Screw
Interrupt Capacity  3000A @ 14.7V
2500A @ 28V
Minimum Operating Temperature -10° C
Maximum Operating Temperature 60° C
Screw Terminal Torque 6 in-lb (0.68 Nm)
Weight 0.06lb (0.03 kg)
Weight 0.09lb (0.04 kg)

Specifications

Amperage 20A
Maximum Voltage 32V DC
Mounting Panel Mount 3/8-27 UNS
Circuit Breaker Type Thermal trip, manual push-button reset only
Terminal Type #8 Screw
Interrupt Capacity  3000A @ 14.7V
2500A @ 28V
Minimum Operating Temperature -10° C
Maximum Operating Temperature 60° C
Screw Terminal Torque 6 in-lb (0.68 Nm)
Weight 0.06lb (0.03 kg)
Weight 0.09lb (0.04 kg)
